ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10 - Schneider Electric - NSYTBS775

ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10 - Schneider Electric - NSYTBS775

NSYTBS775

ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10 - Schneider Electric - NSYTBS775

Enclosures

~~List Price £4.50 +VAT~~

Our Price £3.38 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

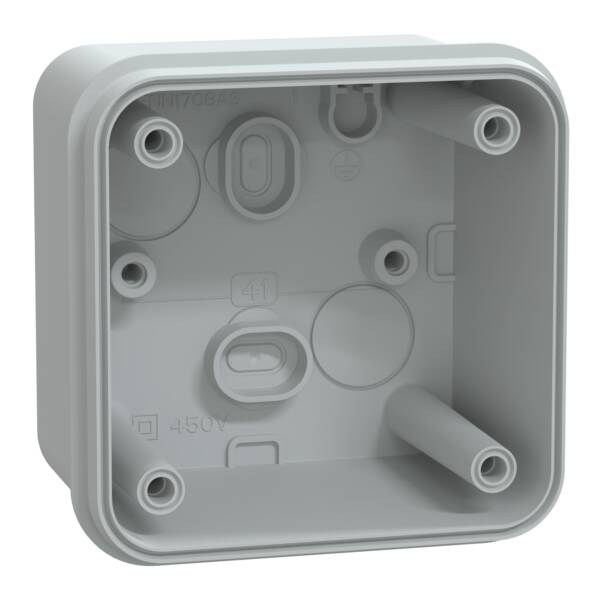

PanelSeT TBS industrial ABS box with opaque cover H10. Int is 65 x 65 x 45 mm. Ext is 74 x 74 x 56 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Brand: Schneider Electric
Range: Enclosures
Part No: NSYTBS775
Weight (kg): 0.07 kg
Type: Enclosures
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
Suitable for lightning protection: TRUE
RAL-number: 7035
Type of door: None
Height: 74
Internal depth: 47
Degree of protection (IP): IP66
Transparent cover/door: FALSE
Cover model: Closed
Plate thickness cabinet: 1.8
Plate thickness door/cover: 1.7
Colour: Grey
Width: 74
Circuit integrity: None
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 54
With lock: FALSE
Impact strength: IK07

Datasheet for NSYTBS775 - ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10 - Schneider Electric - NSYTBS775

Download
