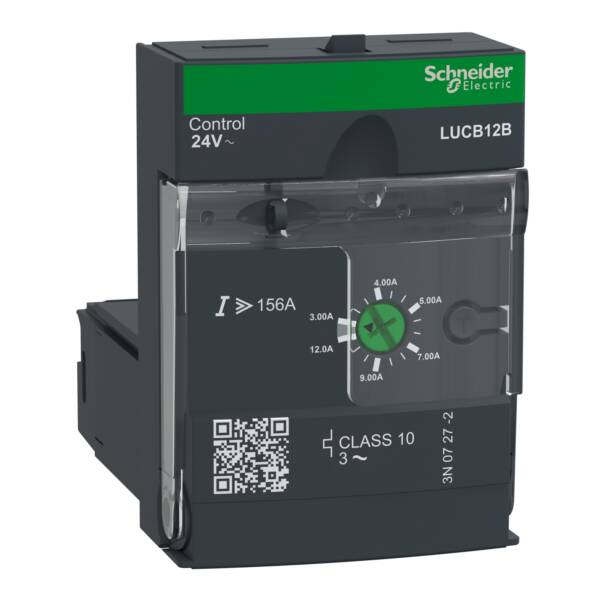

Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 10, coil 24V AC - Schneider Electric - LUCB12B

Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 10, coil 24V AC - Schneider Electric - LUCB12B

LUCB12B

Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 10, coil 24V AC - Schneider Electric - LUCB12B

Control

~~List Price £106.49 +VAT~~

Our Price £79.87 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCB12B
Weight (kg): 0.12 kg
Type: TeSys U
Type of motor protection: Electronic release
Rated control supply voltage Us at AC 50HZ: 24 V
Number of poles: 3
Rated control supply voltage Us at AC 60HZ: 24 V
Initial value of the undelayed short-circuit release - setting range: 156
Voltage type for actuating: AC
End value adjustment range undelayed short-circuit release: 156
With ground fault protection function: TRUE
Overload release current setting: 3…12 A
Rated permanent current Iu: 12
Short-circuit release function: Undelayed

Datasheet for LUCB12B - Advanced control unit, TeSys U, 3-12A, 3P motors, protection & diagnostic, class 10, coil 24V AC - Schneider Electric - LUCB12B

Download
