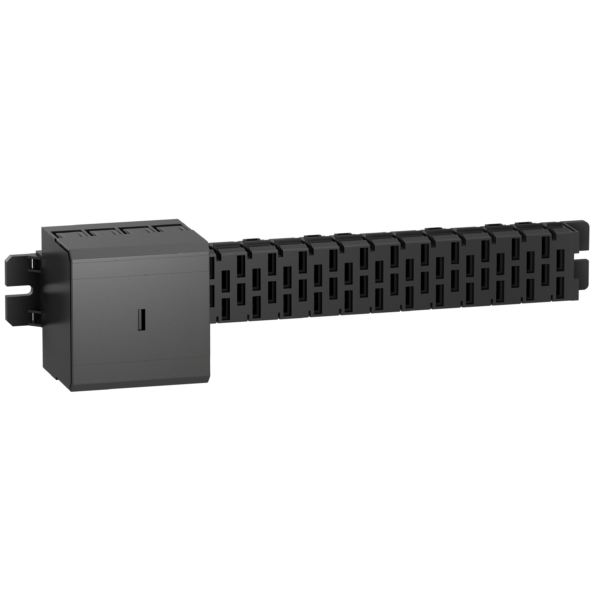

BUSBAR TETRA 160A LG 452 - Schneider Electric - AK5JB144

BUSBAR TETRA 160A LG 452 - Schneider Electric - AK5JB144

AK5JB144

BUSBAR TETRA 160A LG 452 - Schneider Electric - AK5JB144

Enclosures

~~List Price £117.98 +VAT~~

Our Price £88.49 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Linergy busbar for AC network. It applies to distribution, 12 Tap-offs and 4 conductors. The rated operational current is 160 A at 35 °C. Mounting by horizontal and vertical which using side stop AK5BT01 on mounting plates AK5PA. It provides protection for AM fuses, GF fuses and NS160H circuit breaker. IPxx B conforming to IEC 60529 and 850 °C fire resistance conforming to IEC 60695. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It conforms to RoHS.

Brand: Schneider Electric
Range: Linergy HK
Part No: AK5JB144
Weight (kg): 1.14 kg
Colour: Grey
Length: 452
Width: 82
Length busbar trunk: 452
Model: Single
Number of conductors (without earthing): 4
RAL-number: 7021
Rated current at AC 50 Hz: 160
Number of poles: 4
Flexible: FALSE
Rated voltage at AC 50 Hz: 400…690 V
Height: 81
Number of tap-off units: 18
Degree of protection (IP): IP20

Datasheet for AK5JB144 - BUSBAR TETRA 160A LG 452 - Schneider Electric - AK5JB144

Download
