cam changeover switch - 4-pole - 60° - 32 A - screw mounting - Schneider Electric - K30H004UP

cam changeover switch - 4-pole - 60° - 32 A - screw mounting - Schneider Electric - K30H004UP

K30H004UP

cam changeover switch - 4-pole - 60° - 32 A - screw mounting - Schneider Electric - K30H004UP

Control

~~List Price £86.32 +VAT~~

Our Price £64.74 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

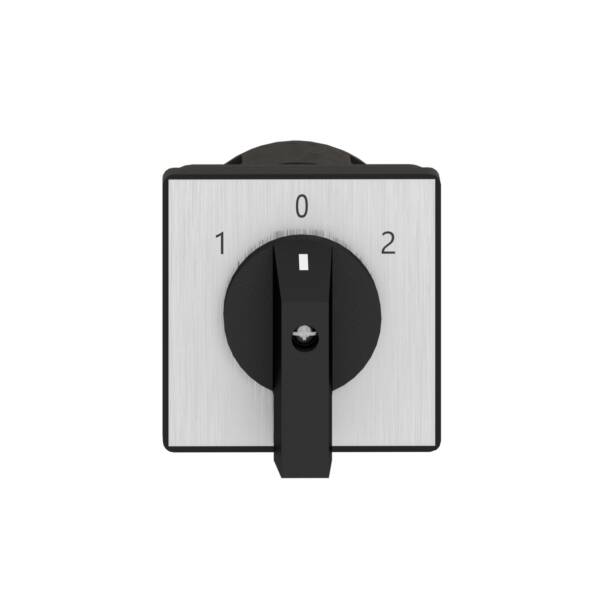

This Harmony K30 complete cam switch/selector switch has 4 poles (4P). It also has a rating of 32A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.

Brand: Schneider Electric
Range: Harmony K
Part No: K30H004UP
Weight (kg): 0.34 kg
Type: Harmony K
With 0 (off) position: TRUE
With retraction in 0-position: FALSE
Type of electrical connection of main circuit: Screw connection
Model: Reverser
Type of control element: Long turning handle
Material housing: Other
Degree of protection (IP), front side: IP40
Rated permanent current Iu: 32
Complete device in housing: TRUE
Number of poles: 4
Suitable for front mounting 4-hole: TRUE
Degree of protection (NEMA), front side: Other
Suitable for distribution board installation: FALSE
Suitable for intermediate mounting: TRUE
Suitable for ground mounting: FALSE

Datasheet for K30H004UP - cam changeover switch - 4-pole - 60° - 32 A - screw mounting - Schneider Electric - K30H004UP

Download
