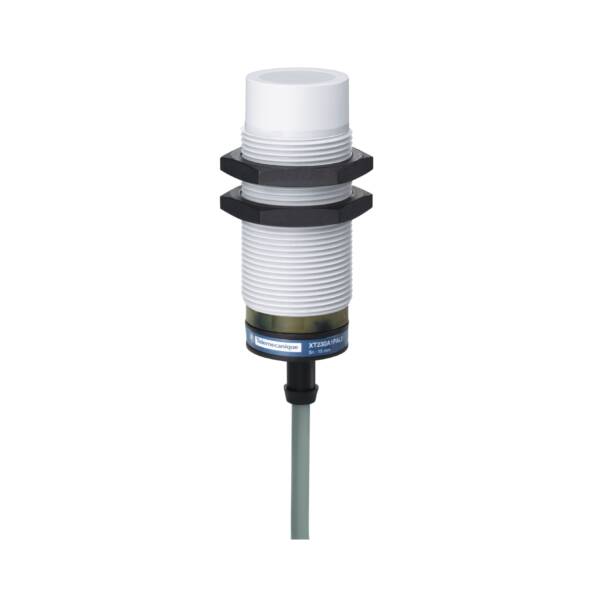

This product is part of the XS range, an offer of inductive proximity sensors. This capacitive proximity sensor in XT2 cylindrical M30 design. It has fixed body, non flush mountable and frontal detection face. It is ideal for detection of insulated or conductive materials. It supports 15mm nominal sensing distance and 1 NC 2-wire discrete output. It is furnished with 2m cable for electrical connection and M30 x 1.5 thread. It is a sensor with a rated supply voltage of 24V to 240V AC, 50Hz to 60Hz, a current consumption of <4mA and a maximum delay response of 20ms. It is an IP67 rated product. The enclosure is made of plastic. Its dimension is 74.5mm (Length) and weighs 0.27kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE and CETLus. It meets EN/IEC 60947-5-2 standards. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Capacitive proximity sensors technology for non contact sensing of any material up to 20mm.

Brand

Telemecanique Sensors

Range

Inductive and capacitive sensors XS & XT

Part No

XT230A1FBL2

Weight (kg)

0.16 kg

Type

Inductive and capacitive sensors XS & XT
