XT230A1PAL2

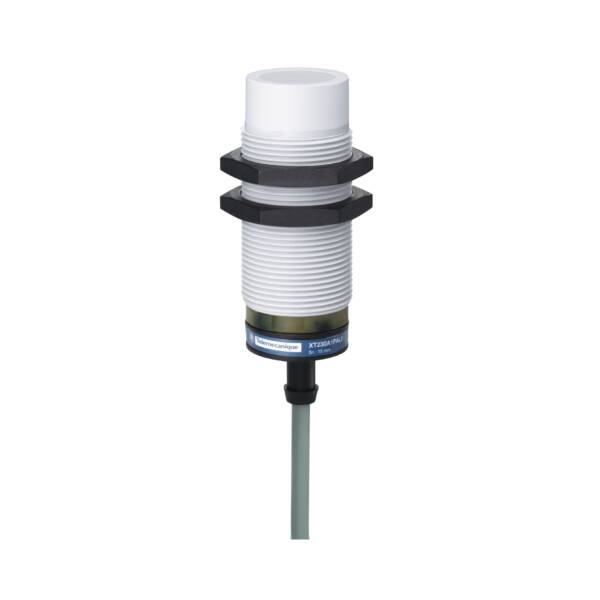

capacitive sensor - XT1 - cylindrical M30 - plastic - Sn 15 mm - cable 2 m - Telemecanique Sensors - XT230A1PAL2

Control

~~List Price £112.84 +VAT~~

Our Price £84.63 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical plastic case, diameter 30mm, threaded M30 x 1.5 and a 2m long PVC cable. Advantages of this capacitive proximity sensor, no physical contact with the object to be detected, high operating rates, solid-state product, no moving parts. It is non flush mountable with a sensing distance of 15mm. 3-wire, 12V to 24V DC, with NO function and a PNP output. Output state indication by a yellow LED. It is suitable for detection (presence or passage) of paper, cardboard, glass, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A threaded sleeve XTAZ30 and a 90° fixing bracket XXZ30, to be ordered separatly, are available to facilitate the mounting and protection of this sensor.

Brand: Telemecanique Sensors
Range: Inductive and capacitive sensors XS & XT
Part No: XT230A1PAL2
Weight (kg): 0.16 kg
Type: Inductive and capacitive sensors XS & XT
