LC1DFKB7

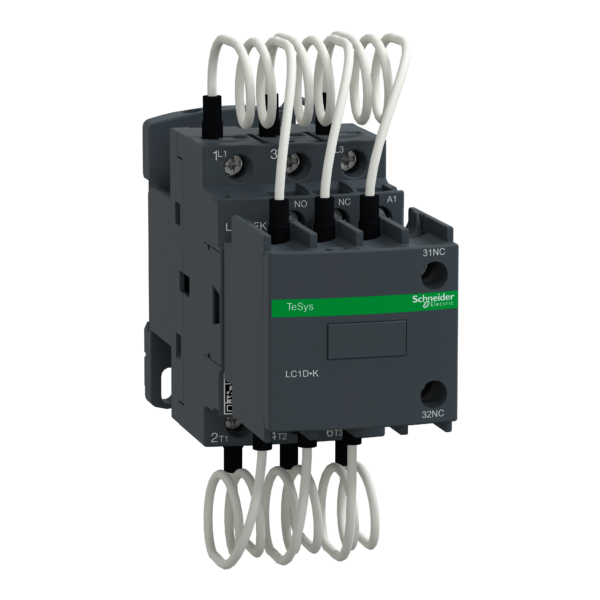

Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 24 V AC 50/60 Hz - Schneider Electric - LC1DFKB7

Control

~~List Price £97.02 +VAT~~

Our Price £72.77 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 12.5kVAR@400V 50Hz (21kVAR@690V). It provides a 24V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DFKB7
Weight (kg): 0.54 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 24 V
Rated control supply voltage Us at AC 60HZ: 24 V
Voltage type for actuating: AC
Rated blind power at 400 V, 50 Hz: 12.5
Number of main contacts as normally open contact: 3
Number of auxiliary contacts as normally closed contact: 2
Number of auxiliary contacts as normally open contact: 1

Datasheet for LC1DFKB7 - Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 24 V AC 50/60 Hz - Schneider Electric - LC1DFKB7

Download
