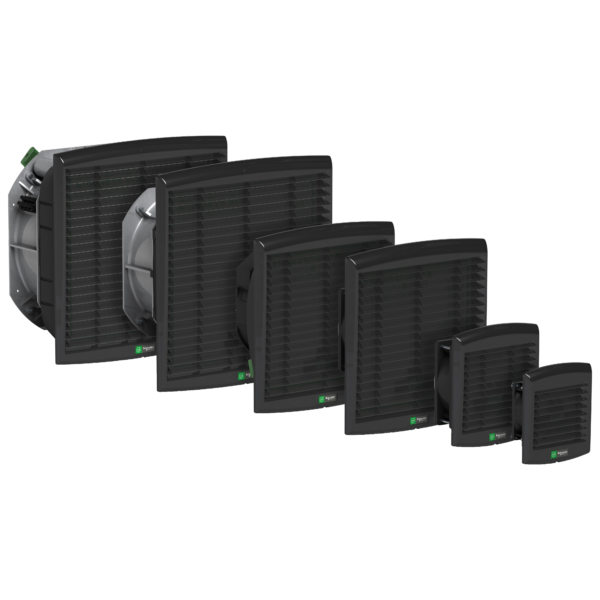

ClimaSys CV - CSVS SmartFan 850m3/h 400V IP54 - Schneider Electric - NSYCVF850M400DG

ClimaSys CV - CSVS SmartFan 850m3/h 400V IP54 - Schneider Electric - NSYCVF850M400DG

NSYCVF850M400DG

ClimaSys CV - CSVS SmartFan 850m3/h 400V IP54 - Schneider Electric - NSYCVF850M400DG

Enclosures

~~List Price £660.45 +VAT~~

Our Price £495.34 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"This product is a forced air ventilation fan that is designed to provide reliable and efficient cooling" "It is made of injected thermoplastic (PC) and motor support (ASA PC) and is available in smoked black (RAL 9005) color" "The fan has a ball bearing type and a maximum pressure of 170 Pa" "It has a power range of 126 W 50 Hz and 126 W 60 Hz, and a free flow rate of 803 m3/h at 50 Hz and 931 m3/h at 60 Hz" "It can be used in ambient air temperatures ranging from -15 to 60°C" "It has a terminal block and comes with a smart filter with dust sensor, a fan sensor ready to be mounted, a cable gland, and an external protective transparent smoked grille on the front" "It has an IP54 degree of protection and a noise level of 75-77 dB" "The cut-out dimensions of the fan are 291 x 291 mm"

Brand: Schneider Electric
Range: ClimaSys CV
Part No: NSYCVF850M400DG
Weight (kg): 4.50 kg
Type: ClimaSys CV
Colour: Black
Suitable for 19 inch rack mounting: FALSE
Width: 316
Noise emission: 77
Air circulator: TRUE
Voltage type: AC
With protective cover: TRUE
Mounting method: Screw mounting
Operating voltage at AC 50 Hz: 396…466 V
Wall build in: TRUE
Depth: 162
Operating voltage at AC 60 Hz: 396…466 V
RAL-number: 9005
Built as slide-in ventilator: TRUE
EMC-version: FALSE
Height: 336
Roof ventilator: FALSE
Degree of protection (IP): IP54
With filter: TRUE
Number of fans: 1
Rated power: 126
Volume flow, freeblowing: 803

Datasheet for NSYCVF850M400DG - ClimaSys CV - CSVS SmartFan 850m3/h 400V IP54 - Schneider Electric - NSYCVF850M400DG

Download
