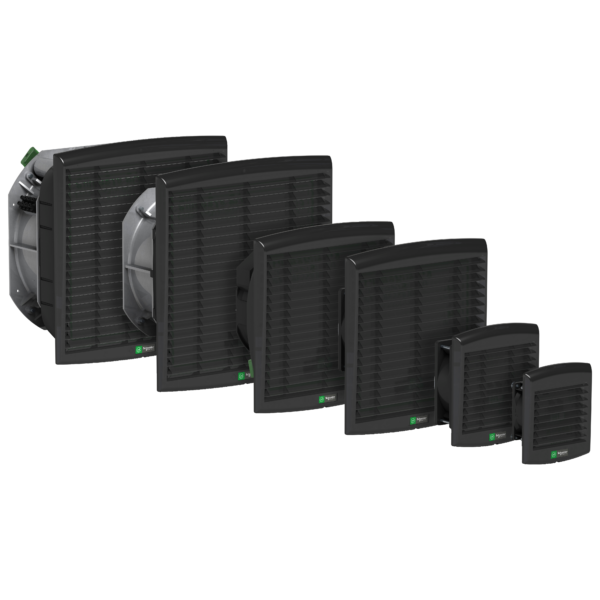

ClimaSys CV - CSVS SmartFan 85m3/h 230V IP54 - Schneider Electric - NSYCVF85M230DG

ClimaSys CV - CSVS SmartFan 85m3/h 230V IP54 - Schneider Electric - NSYCVF85M230DG

NSYCVF85M230DG

ClimaSys CV - CSVS SmartFan 85m3/h 230V IP54 - Schneider Electric - NSYCVF85M230DG

Enclosures

~~List Price £334.29 +VAT~~

Our Price £250.72 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"This product is a smart fan that is designed to provide reliable and efficient cooling" "It is made of injected thermoplastic (PC) and motor support (ASA PC) and is available in smoked black (RAL 9005) color" "The fan has a ball bearing type and a maximum pressure of 50 Pa" "It has a power range of 15 W 50 Hz and 17 W 60 Hz, and a free flow rate of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz" "It can be used in ambient air temperatures ranging from -20 to 60°C" "It has a Faston connector and comes with a smart filter with dust sensor, a fan sensor ready to be mounted, a cable gland, and an external protective transparent smoked grille on the front" "It has an IP54 degree of protection and a noise level of 46-49 dB" "The cut-out dimensions of the fan are 125 x 125 mm"

Brand: Schneider Electric
Range: ClimaSys CV
Part No: NSYCVF85M230DG
Weight (kg): 1.09 kg
Type: ClimaSys CV
Colour: Black
Suitable for 19 inch rack mounting: FALSE
Width: 150
Noise emission: 49
Air circulator: TRUE
Voltage type: AC
With protective cover: TRUE
Mounting method: Snap mounting
Operating voltage at AC 50 Hz: 175…253 V
Depth: 62
Operating voltage at AC 60 Hz: 175…253 V
Wall build in: TRUE
RAL-number: 9005
Built as slide-in ventilator: TRUE
EMC-version: FALSE
Height: 170
Roof ventilator: FALSE
With filter: TRUE
Degree of protection (IP): IP54
Number of fans: 1
Rated power: 15
Volume flow, freeblowing: 85

Datasheet for NSYCVF85M230DG - ClimaSys CV - CSVS SmartFan 85m3/h 230V IP54 - Schneider Electric - NSYCVF85M230DG

Download
