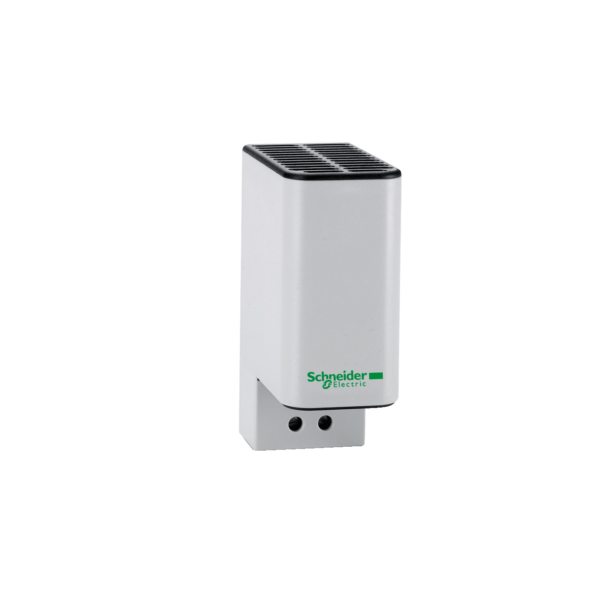

ClimaSys PTC heating resistance 10W,110-250V insulate - Schneider Electric - NSYCR10WU2C

ClimaSys PTC heating resistance 10W,110-250V insulate - Schneider Electric - NSYCR10WU2C

NSYCR10WU2C

ClimaSys PTC heating resistance 10W,110-250V insulate - Schneider Electric - NSYCR10WU2C

Enclosures

~~List Price £36.94 +VAT~~

Our Price £27.71 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

ClimaSys PTC heating resistance insulate. 10W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 2 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.

Brand: Schneider Electric
Range: ClimaSys CR
Part No: NSYCR10WU2C
Weight (kg): 0.16 kg
Type: ClimaSys CR
Width: 38
Continuous heating power at 10 °C: 10
Voltage type: AC
With room temperature controller: FALSE
Operating voltage at AC 50 Hz: 110…250 V
Depth: 75
Operating voltage at AC 60 Hz: 110…250 V
With fan: FALSE
Height: 98
Degree of protection (IP): IP20
Degree of protection (NEMA): 1
Rated power: 10

Datasheet for NSYCR10WU2C - ClimaSys PTC heating resistance 10W,110-250V insulate - Schneider Electric - NSYCR10WU2C

Download
