NSYCR170W230VVC

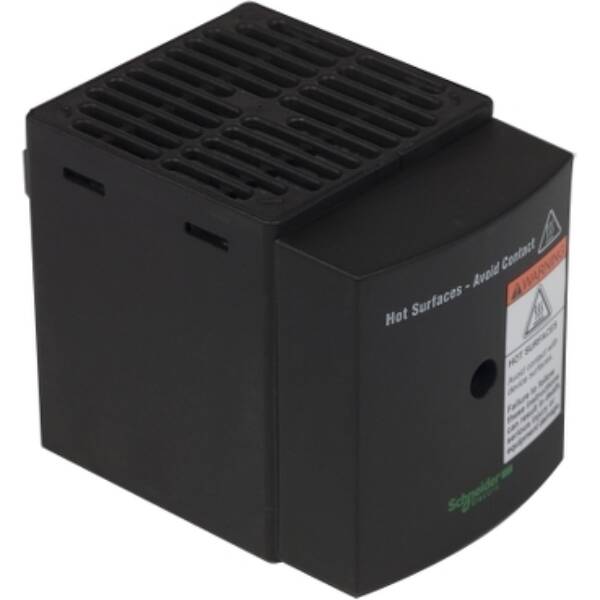

ClimaSys PTC heating resistance 177W 230V with ventilator insulate - Schneider Electric - NSYCR170W230VVC

Enclosures

~~List Price £159.02 +VAT~~

Our Price £119.27 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

"Resistance heater with fan 177W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System" "The product has extruded aluminium body and plastic cover" "Fixing by clips in vertical operating position" The product width is 65mm, height is 75mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit The 2 screw terminals 2,5 mm² are used for electrical connection Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification Conforms class II electrical insulation class "This product is qualified as a green premium, with minimal use of hazardous substances"
