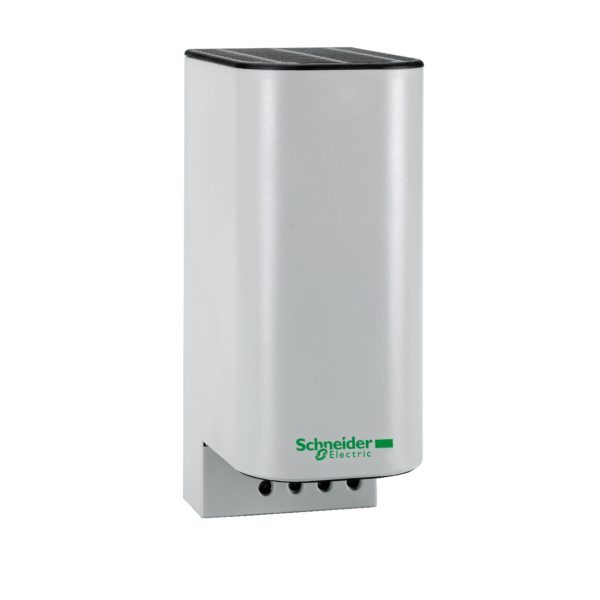

ClimaSys PTC heating resistance 50W,270-420V insulate - Schneider Electric - NSYCR50WU3C

ClimaSys PTC heating resistance 50W,270-420V insulate - Schneider Electric - NSYCR50WU3C

NSYCR50WU3C

ClimaSys PTC heating resistance 50W,270-420V insulate - Schneider Electric - NSYCR50WU3C

Enclosures

~~List Price £89.46 +VAT~~

Our Price £67.10 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

ClimaSys PTC heating resistance insulate. 50W, 270-420V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.

Brand: Schneider Electric
Range: ClimaSys CR
Part No: NSYCR50WU3C
Weight (kg): 0.34 kg
Type: ClimaSys CR
Width: 60
Continuous heating power at 10 °C: 55
Voltage type: AC
With room temperature controller: FALSE
Operating voltage at AC 50 Hz: 270…420 V
Depth: 90
Operating voltage at AC 60 Hz: 270…420 V
With fan: FALSE
Height: 110
Degree of protection (IP): IP20
Degree of protection (NEMA): 1
Rated power: 55

Datasheet for NSYCR50WU3C - ClimaSys PTC heating resistance 50W,270-420V insulate - Schneider Electric - NSYCR50WU3C
