VLS1GD1

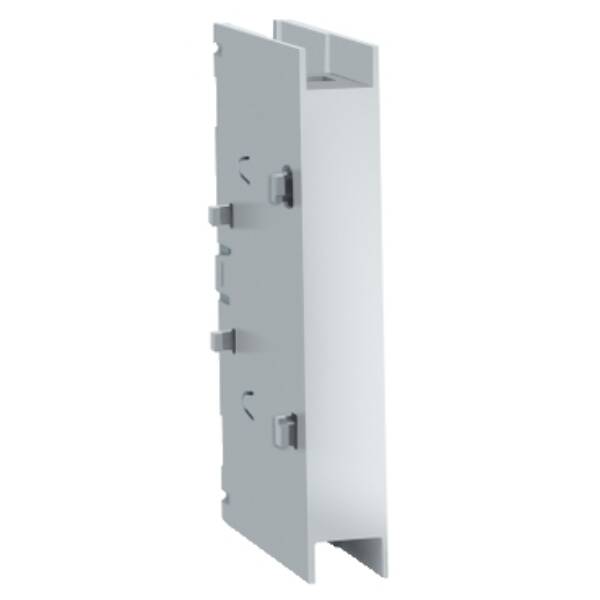

Disconnect switch, TeSys VLS, additional earthing ground terminal, for 16A to 40A, size 1 (36mm), door mount - Schneider Electric - VLS1GD1

Control

~~List Price £32.01 +VAT~~

Our Price £24.01 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This grounding terminal block can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1 or VLS3P040D1 door mount switch. Grounding block can be mounted on the right or left hand side. The operational voltage of this grounding block is 600 Vac 50/60 Hz. This grounding block has a 63 A current rating. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Grounding block is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.09 lbs. This grounding block is cULus Listed and meets IEC 60947-3 requirements.

Brand: Schneider Electric
Range: Tesys VLS
Part No: VLS1GD1
Weight (kg): 0.04 kg
Type: Tesys VLS
