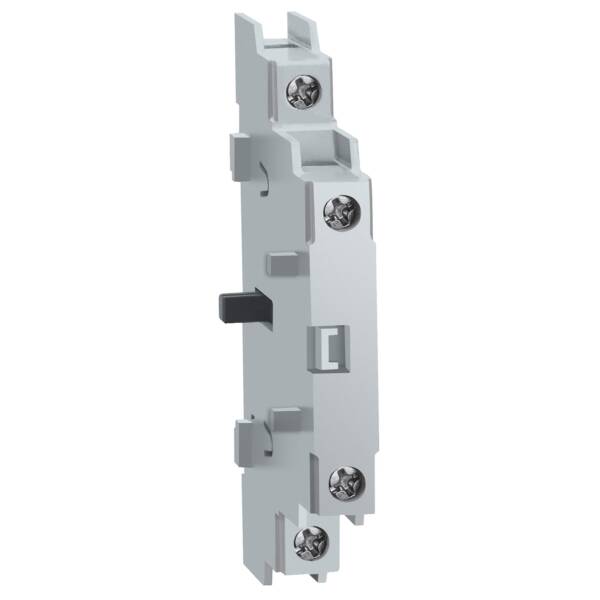

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early beak contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Auxiliary contact module is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.08 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.

Brand

Schneider Electric

Range

Tesys VLS

Part No

VLSA10R1E

Weight (kg)

0.05 kg

Type

Tesys VLS
