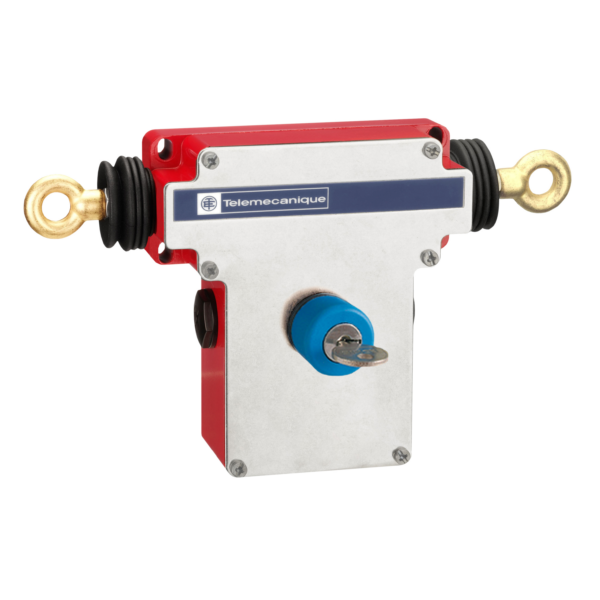

This XY2CED dual Emergency Stop Rope pull Switch is designed with a right hand side and a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area. It operates with two ropes each with a length between 35 and 100 meters. It has a Zamak body with a key-release pushbutton reset, Nitrile bellows, no pilot light, and 2 normally open and 2 normally closed slow break contacts. Its B10D reliability data is 300 000. This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP66 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Brand

Telemecanique Sensors

Range

Preventa XY2C

Part No

XY2CEDA590

Weight (kg)

1.99 kg

Type

Preventa XY2C
