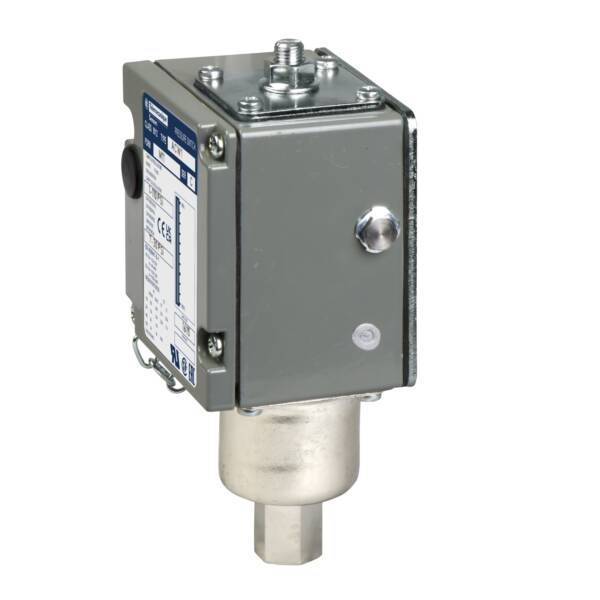

This product is part of the XM range, an offer of electromechanical pressure switches for pressure control. This electromechanical pressure switch features a G 1/4 (female) connector for fluid connection and bellows pressure actuator. This pressure switch is suitable for controlling fluids such as air (-73°C to 125°C), hydraulic oil (-73°C to 125°C) and non-corrosive fluid (-73°C to 125°C). It is furnished with screw clamp terminals for electrical connection and 1 entry tapped for ISO M20 cable gland and 1 change over snap action contacts. The external setting can be done. It offers a mechanical durability of about 1 million operating cycles. It is an IP65 rated product. The enclosure is made of zinc alloy. Its dimensions are 88mm (Width) x 68mm (Depth) x 167mm (Height) and weighs 1.55kg. It is suitable for regulation between 2 thresholds. This product is certified by CE. It meets EN/IEC 60947-5-1 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. Ex nautilus control pressure switches, pressure transmitters and power pressure switches for industrial pressure control.

Brand

Telemecanique Sensors

Range

pressure sensors XM

Part No

ACW1M119012

Weight (kg)

1.57 kg

Type

pressure sensors XM
