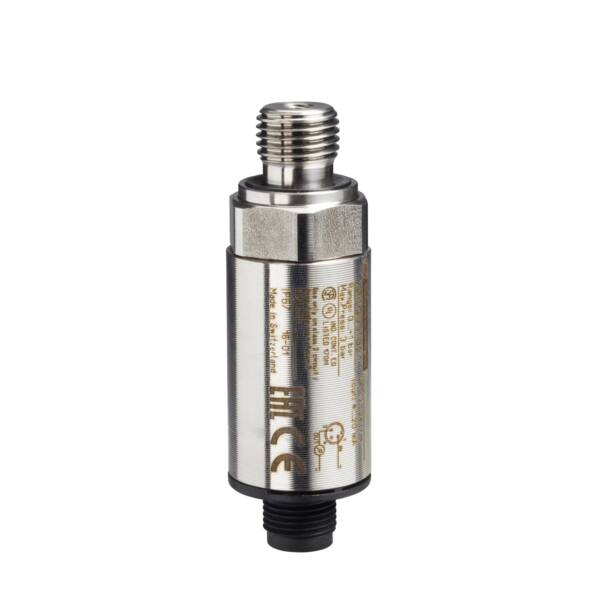

This XMLG Pressure Transmitter is a part of the OsiSense XM product range of pressure transmitters and switches. This pressure transmitter controls or regulates pressure levels in air, fresh water, hydraulic oils, and some corrosive fluids. It is suitable for industrial applications, including machine tools, food and beverage, packaging, conveying, hoisting, assembly, and wood, automotive, and paper industry applications. A pressure transmitter transforms measured pressure into a proportional analog output. The range of this transmitter is 0psi to 14.5psi and the current output is 4mA to 20mA. The transmitter accepts 12VDC to 24VDC power. The transmitter has an M12 3-pin male connector and a 1/4in NPT male fluid connection. It is compliant with IEC, CE, EAC, UL, and CSA standards and IP66, IP67, and NEMA 4 rated. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CSA C22.2 No 14, EAC and UL 508. It meets CE and EN/IEC 61326-2-3 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.

Brand

Telemecanique Sensors

Range

pressure sensors XM

Part No

XMLG001D23

Weight (kg)

0.14 kg

Type

pressure sensors XM
