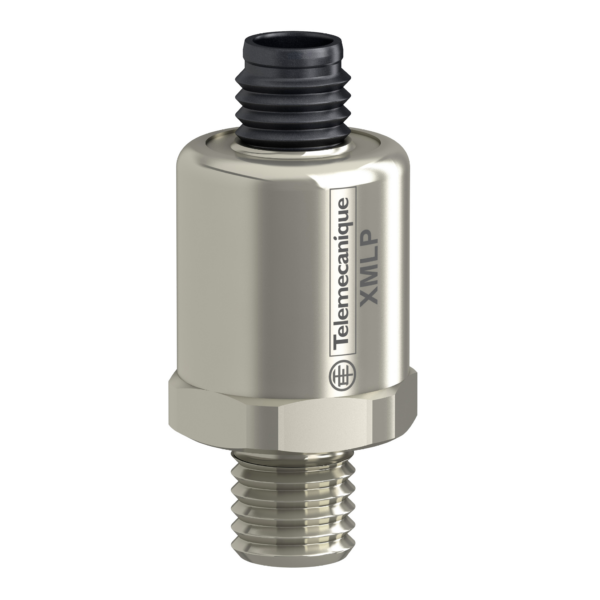

This pressure transmitter is part of the XMLP range, an offer of electronic pressure sensors. The XMLP transmitters are designed for the vacuum measuring and the pressure measuring. They are compatible with a large number of fluids. This product has a pressure range of 0psi to 100psi, with a maximum permissible accidental pressure at 300psi and a destruction pressure at 900psi. Made of stainless steel, this transmitter is compact and rugged. It has an analogue output (4mA to 20mA), wich delivers a signal proportional to the measured pressure. It is appropriate for controlling air, fresh water, hydraulic oil, gas and refrigeration fluid. This pressure transmitter features a compact metal body, a 1/4-18NPT (male) 316L stainless steel fluid connector and a M12 electrical connector. It is suitable for machine tools, moulding presses, stamping presses and lifting gear. It complies with RCM, CULus, CE, EAC certifications, and with NSF ANSI 61 and EN/IEC 61326-2-3 standards. Dedicated accessories, to be ordered separatly, are available to facilitate the setting of the transmitter. Switches with a display, sealing gaskets, pre-wired connectors, etc. This transmitter is sold in lots of 25. It operates in all positions. The transmitters of the XMLP range integrate a ceramic pressure measuring cell, providing a high level of sensitivity and good resistance to abrasive fluids.

Brand

Telemecanique Sensors

Range

pressure sensors XM

Part No

XMLP100PD230Q

Weight (kg)

0.08 kg

Type

pressure sensors XM
