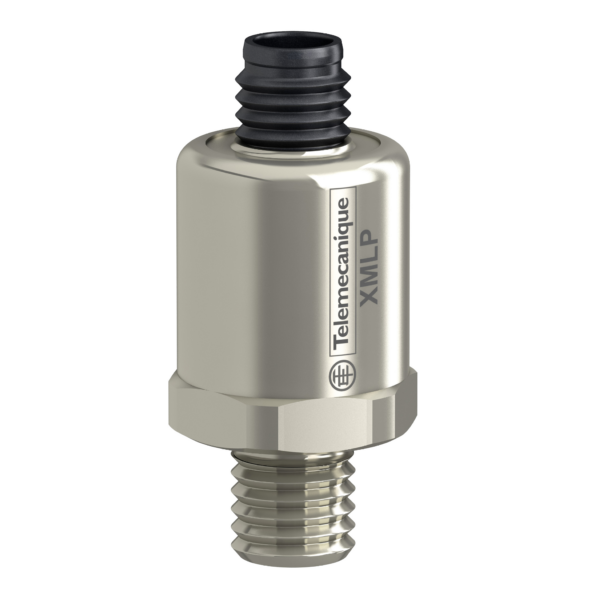

This XMLP Pressure Transmitter is a part of the OsiSense XM product range of pressure transmitters and switches. This pressure transmitter controls or regulates pressure levels in air, fresh water, hydraulic oils, and refrigeration fluids and is used for industrial machine manufacturers for hydraulic systems, including HVAC and pumping. A pressure transmitter transforms measured pressure into a proportional analog output. The range of this transmitter is 0psi to 150psi and the analog output is 0VDC to 10VDC. The transmitter accepts 12VDC to 24VDC power. The transmitter has an M12 4-pin male connector and a 1/4in NPT male fluid connection. It is compliant with IEC, NSF, EAC, CULus, RCM, and CE standards and IP65, IP67, and IP69K rated. Its dimensions are 26mm (diameter) x 36mm (length). It weighs 0.088kg. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CE, CULus, EAC and RCM. It meets EN/IEC 61326-2-3 and NSF ANSI 61 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.

Brand

Telemecanique Sensors

Range

pressure sensors XM

Part No

XMLP150PD730

Weight (kg)

0.09 kg

Type

pressure sensors XM
