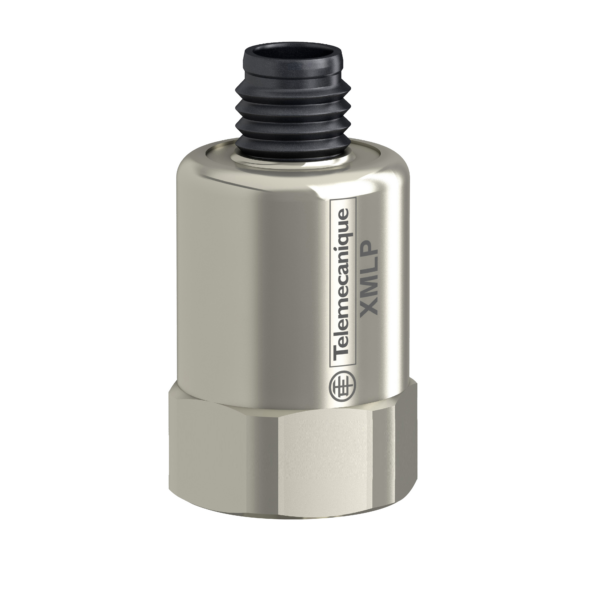

This pressure transmitter is part of the XMLP range, an offer of electronic pressure sensors. The XMLP transmitters are designed for the vacuum measuring and the pressure measuring. They are compatible with a large number of fluids. This product has a pressure range of 0bar to 60bar, with a maximum permissible accidental pressure at 180bar and a destruction pressure at 360bar. Made of stainless steel, this transmitter is compact and rugged. It has an analogue output (0V to 10V), wich delivers a signal proportional to the measured pressure. It is appropriate for controlling air, fresh water, hydraulic oil, gas and refrigeration fluid. This pressure transmitter features a compact metal body, a SAE 7/16-20UNF-2B (female with Schrader pin) 316L stainless steel fluid connector and a M12 electrical connector. It is suitable for machine tools, moulding presses, stamping presses and lifting gear. It complies with RCM, CULus, CE, EAC certifications, and with NSF ANSI 61 and EN/IEC 61326-2-3 standards. Dedicated accessories, to be ordered separatly, are available to facilitate the setting of the transmitter. Switches with a display, sealing gaskets, pre-wired connectors, etc. It operates in all positions. The transmitters of the XMLP range integrate a ceramic pressure measuring cell, providing a high level of sensitivity and good resistance to abrasive fluids.

Brand

Telemecanique Sensors

Range

pressure sensors XM

Part No

XMLP060BD790

Weight (kg)

0.11 kg

Type

pressure sensors XM
