LR9G225

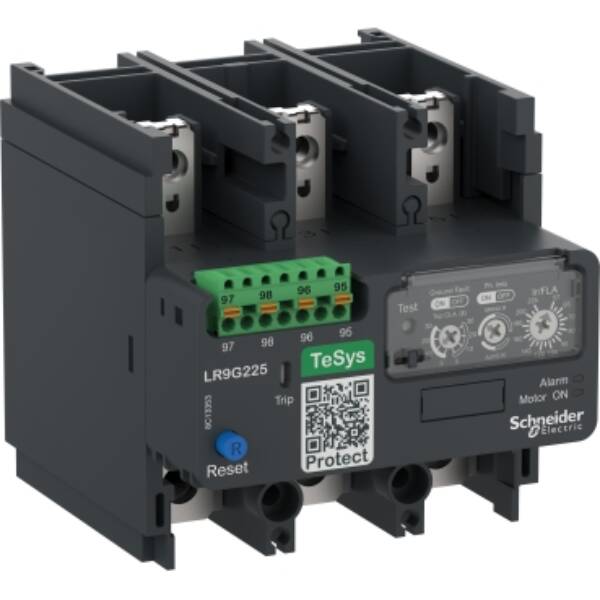

Electronic thermal overload relay, TeSys Giga, 57…225 A, class 5E…30E, push-in control connection - Schneider Electric - LR9G225

Control

~~List Price £281.49 +VAT~~

Our Price £211.12 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

Get in touch

TeSys LR9G 225A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.

Brand: Schneider Electric
Range: TeSys Giga
Part No: LR9G225
Weight (kg): 1.41 kg
Type: TeSys Giga
