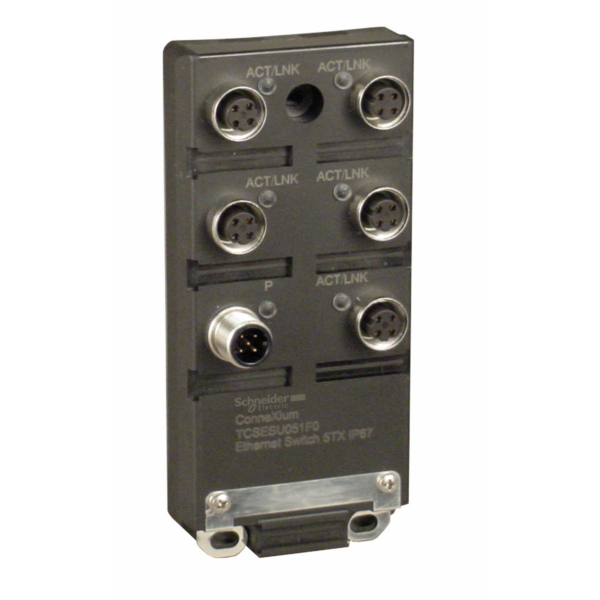

"This product is part of the Modicon Networking range, an offer of Modicon IP67 Unmanaged Switch." "This device comes with Ethernet TCP/IP protocol." "It comes with 5 copper cable transmission ports." "It provides simple connectivity for multiple Ethernet device ." "This product works at a power consumption of 3.2W and a rated voltage of 24V DC." "It is furnished with 5-way removable M12 connector (power supply) for electrical connection" "Its dimensions are 60mm (width) x 126mm (height) x 31mm (depth) and weighs 0.21 kg." "It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels." "It is CE, UL, RCM certified and conforms to UL 508 and EN/IEC 61131 standards." "It is designed to be mounted on flat surface using screws." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."

Brand

Schneider Electric

Range

Modicon Networking

Part No

TCSESU051F0

Weight (kg)

0.42 kg

Type

Modicon Switch

Number of ports 10/100 Mbps RJ45

8

Manageable

TRUE

Height

126

Degree of protection (IP)

IP67

Width

60

Layer 2

FALSE

Layer 3

FALSE

Mounting method

DIN rail (top hat rail)

Depth

31

Power over Ethernet

Other

Ethernet

TRUE
