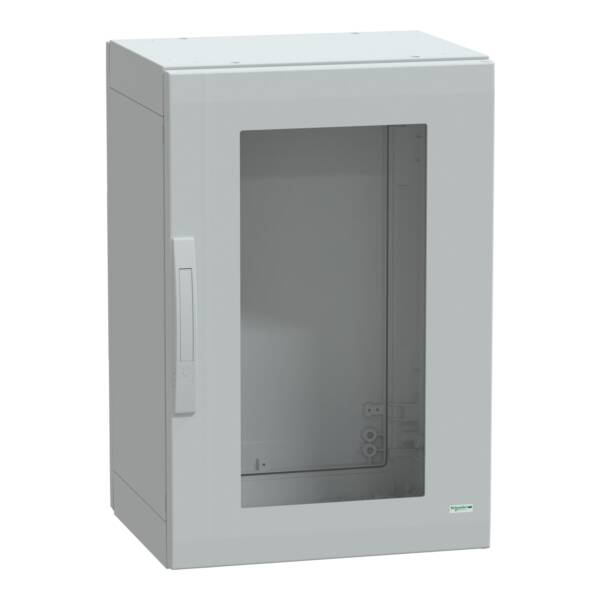

"This PLA version of the Thalassa PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 750mm, a width of 500mm, and a depth of 420mm" "The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to outdoor and industrial environments" "It is available in grey (RAL 7035) and comprises one top part, one bottom part, two side parts, one rear panel, and one transparent front door" "The door can be opened up to 120° from either the right or left side, and features a two-point lock with a 5mm double-bar insert" "The door and rear panel can be removed for maintenance purposes" "The enclosure offers robust protection against fire, impact, dust, and water" "It is resistant to fire up to 960°C in accordance with the IEC 62208 standard and has an IK08 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), providing complete protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and enable the construction of totally insulated solutions" "It is DNV Marine, Veritas, and UL/cUL listed and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA754TG

Weight (kg)

20.39 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

TRUE

Wall fastening possible

TRUE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

TRUE

Height

750

Degree of protection (IP)

IP65

Pitched roof

FALSE

Colour

Grey

Width

500

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Suitable for outdoor set-up

TRUE

Number of locks

1

Material quality

Polyester

Wall build in

FALSE

Depth

420

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
