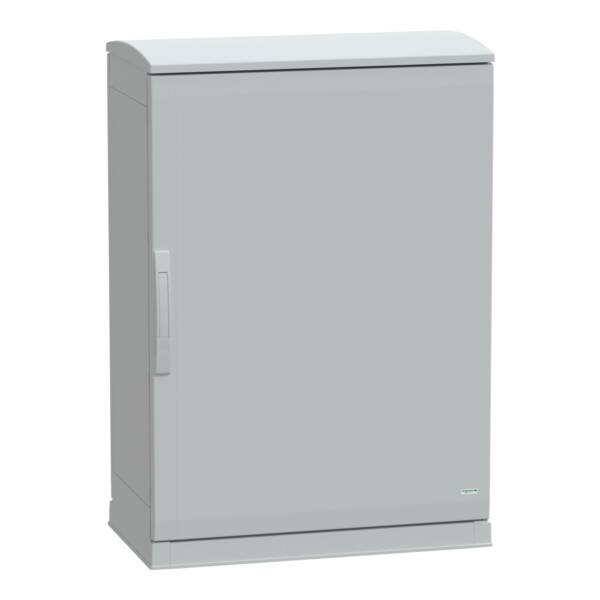

"This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "The enclosure has nominal dimensions of 1000mm in height, 750mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, both indoor and outdoor" "It is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, one canopy, and one plinth" "The front door is designed to open up to 180° from either the right or left side, providing easy access to the equipment inside" "The door features a four-point lock with a handle that has a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure" "The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It is rated IK10 (IEC 62262), indicating high resistance to impacts" "It is also rated IP44 (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAZT1074G

Weight (kg)

39.96 kg

Type

Thalassa PLA

With mounting plate

FALSE

With glazed door

FALSE

Wall fastening possible

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Tackable

FALSE

Height

1000

Degree of protection (IP)

IP44

Pitched roof

FALSE

Colour

Grey

Width

750

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Number of locks

1

Suitable for outdoor set-up

TRUE

Material quality

Polyester

Depth

420

Wall build in

FALSE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

3

With backside door

FALSE

Pole fastening

FALSE

Floor installation possible

TRUE
