"Front & rear plinth, PanelSeT SFN, SF, SM, for electrical enclosure W700mm, plinth H100mm" - Schneider Electric - NSYSPF7100

"Front & rear plinth, PanelSeT SFN, SF, SM, for electrical enclosure W700mm, plinth H100mm" - Schneider Electric - NSYSPF7100

NSYSPF7100

Spacial SF/SM front plinth - 100x700 mm - Schneider Electric - NSYSPF7100

Enclosures

~~List Price £65.64 +VAT~~

Our Price £49.23 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

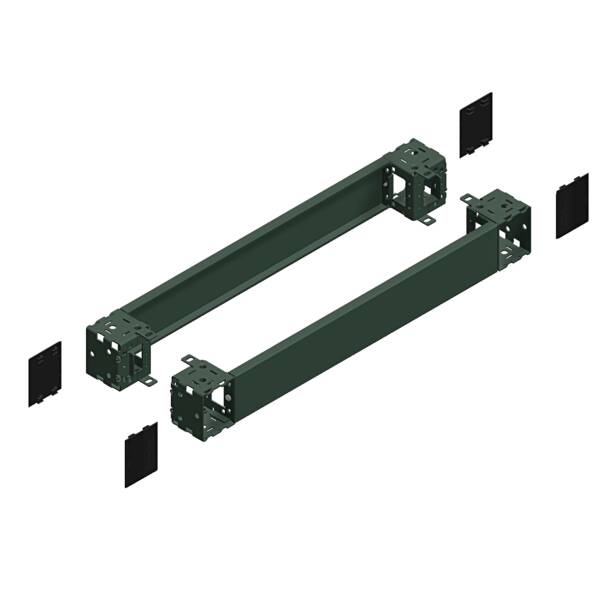

Plain front and back plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal width of 700 mm and its height is 100 mm. The set contains 4 corners with its covers, 1 front panel, 1 rear panel and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Brand: Schneider Electric
Range: PanelSeT SF
Part No: NSYSPF7100
Weight (kg): 7.96 kg
Type: Spacial SF
Suitable for enclosure building width: 700
Colour: Grey
Width: 700
Suitable for cable patch: TRUE
Height: 100
Model: Base front/back
Material: Steel
Suitable for outdoor set-up: FALSE
Max. load capacity: 1300
Depth: 600
Suitable for aeration/de-aeration: FALSE

Datasheet for NSYSPF7100 - "Front & rear plinth, PanelSeT SFN, SF, SM, for electrical enclosure W700mm, plinth H100mm" - Schneider Electric - NSYSPF7100

Download
