DF221NV

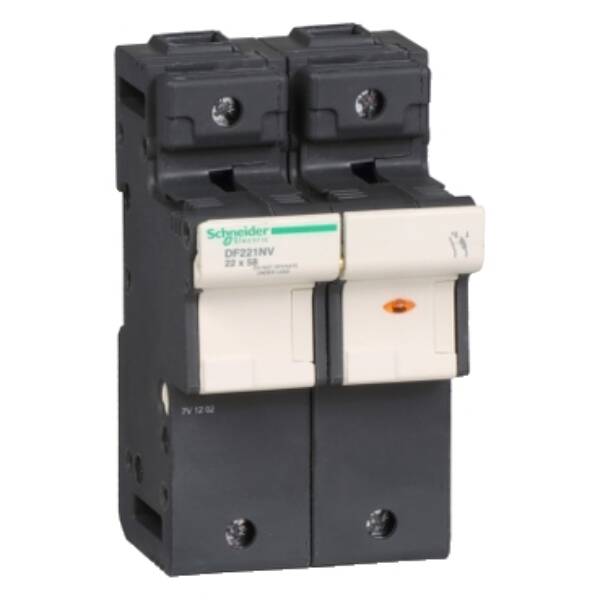

Fuse carrier TeSys DF, 1P+N 125A, fuse size 22x58 mm, blown fuse indicator - Schneider Electric - DF221NV

Control

~~List Price £68.13 +VAT~~

Our Price £51.10 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys DF modular fuse carrier, 2 poles (1P+N), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links up to 125A and short circuit current up to 120kA@400V. It provides a Neutral pole fitted with a locked tubular link, blown fuse indication by LED. Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys DF, LS1/GK1
Part No: DF221NV
Weight (kg): 0.36 kg
Type: TeSys DF, LS1/GK1
