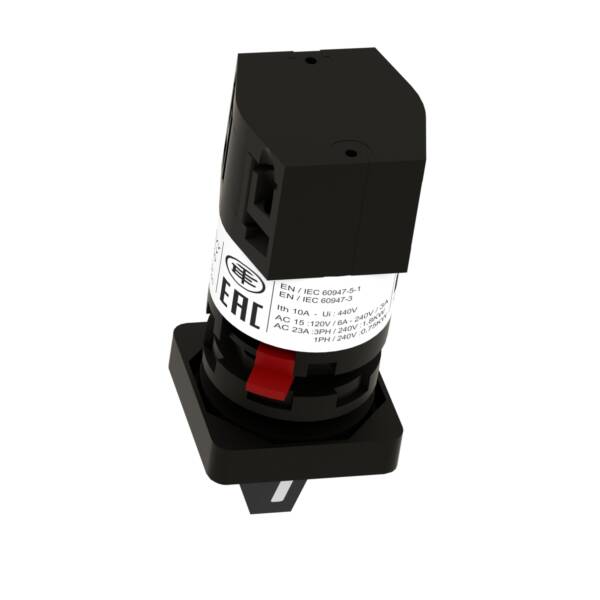

Harmony K1, K2, Cam switch, 1 pole, with off position, 60° switching angle, 10 A, for Ø 16 or 22 mm - Schneider Electric - K10A001ACH

Harmony K1, K2, Cam switch, 1 pole, with off position, 60° switching angle, 10 A, for Ø 16 or 22 mm - Schneider Electric - K10A001ACH

K10A001ACH

Harmony K1, K2, Cam switch, 1 pole, with off position, 60° switching angle, 10 A, for Ø 16 or 22 mm - Schneider Electric - K10A001ACH

Control

~~List Price £22.66 +VAT~~

Our Price £17.00 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Harmony K10 cam switch/selector switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1" marking to indicate the position of the switch. This metal head cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Brand: Schneider Electric
Range: Harmony K
Part No: K10A001ACH
Weight (kg): 0.05 kg
Type: Harmony K
With retraction in 0-position: FALSE
Type of electrical connection of main circuit: Screw connection
With 0 (off) position: TRUE
Model: On/Off switch
Type of control element: Short thumb-grip
Material housing: Other
Degree of protection (IP), front side: IP65/IP67
Rated permanent current Iu: 10
Complete device in housing: TRUE
Degree of protection (NEMA), front side: Other
Number of poles: 1
Suitable for front mounting 4-hole: TRUE
Suitable for distribution board installation: FALSE
Rated operation current Ie at AC-3, 400 V: 2
Suitable for intermediate mounting: FALSE
Suitable for ground mounting: FALSE

Datasheet for K10A001ACH - Harmony K1, K2, Cam switch, 1 pole, with off position, 60° switching angle, 10 A, for Ø 16 or 22 mm - Schneider Electric - K10A001ACH

Download
