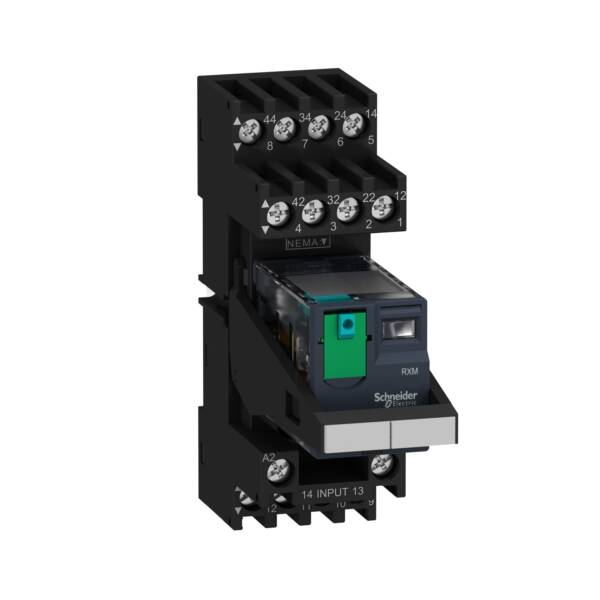

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 6A, 24Vdc, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RXM4AB1BDPVM

Weight (kg)

0.09 kg

Type

Harmony Electromechanical Relays

Width

27

Type of electric connection

Plug-in connection

Drive, switching attitude

Mono stable

With forced-guided contacts

FALSE

Nominal current

6

With LED indication

FALSE

Drive, polarization

Polarity free

Type of switch contact

Other

Depth

78

Complete with socket

TRUE

Number of contacts as change-over contact

4

Voltage type for actuating

DC

Height

79

Rated control supply voltage Us at DC

24 V

Degree of protection (IP)

IP20

With detachable clamps

TRUE
