RE17LCBMS

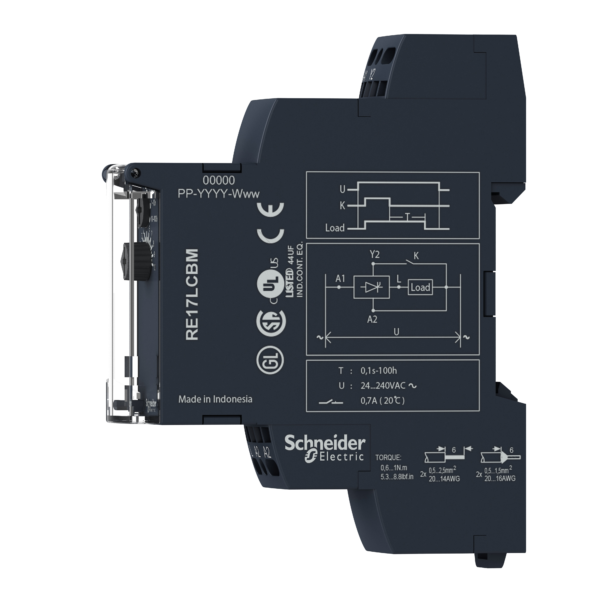

Harmony, Modular timing relay, 0.7 A, 1 s..100 h, off delay, solid state output, spring terminals, 24...240 V AC - Schneider Electric - RE17LCBMS

Control

~~List Price £59.98 +VAT~~

Our Price £44.99 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This modular timing relay belongs to the Schneider Electric Harmony Timer relays range. This is an off-delay timer with single function and is activated by the control input Y1 when connected to 0V. This is a 17.5mm slim relay with input of 24Vac to 240Vac and solid state output of 0.7A. It has one of slimmest form-factors, allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. This is a spring terminal type relay with a sealable cover and rotary trimmers for simple and precise settings. It has 7 selectable timing ranges of 1s, 10s, 1min, 10min, 1h, 10h, and 100h and 2 dials for adjusting. It weighs 0.050Kg. 0 0 The product conforms to IEC 61812-1 and EN 61812-1 standards, and UL, CSA, GL, RCM, EAC, CCC, and China ROHS certifications. 0 0 0 The spring terminals timing relays bring you easy, time-saving and secured wiring during installation and maintenance. 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE17LCBMS
Weight (kg): 0.07 kg
Type: Harmony Timer Relays
