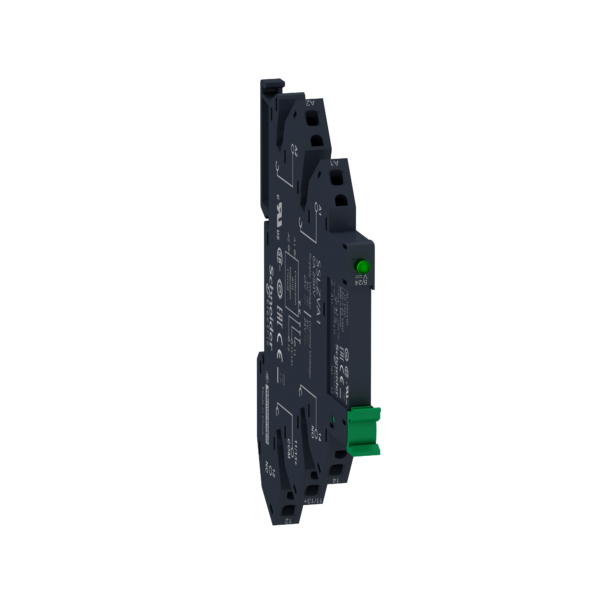

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 4Vdc to 12Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.

Brand

Schneider Electric

Range

Harmony Solid State Relays

Part No

SSL1D03JDPR

Weight (kg)

0.03 kg

Type

Harmony Solid State Relays

Operating voltage

1…24 V

Number of phases

1

Modular version

TRUE

Rated operation current Ie at AC-53a

3.5

Rated operation current Ie at AC-51

3.5

Rated operation current Ie at AC-53b

3.5

Rated control supply voltage Us at DC

1…24 V

Rated operation current Ie at AC-1

3.5

Voltage type for actuating

DC

Switching at zero-crossing

FALSE

Rated operation current Ie at AC-3

3.5
