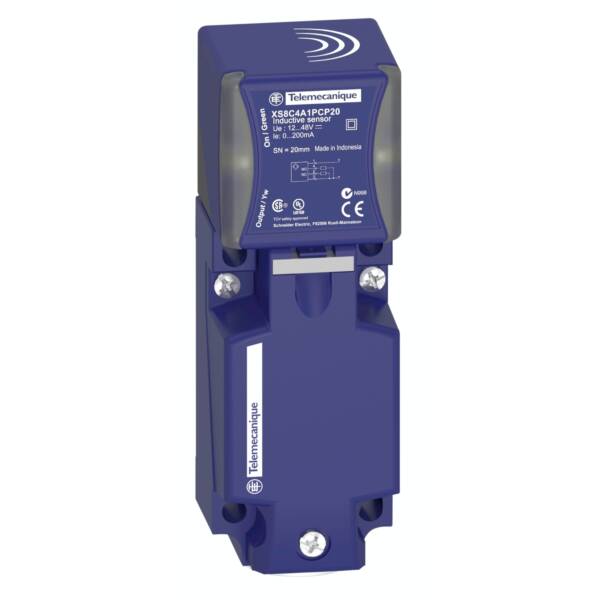

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS8 flat form 40mm x 40mm x 117mm design. It is flush mountable and has a frontal detection face. It supports 20mm nominal sensing distance and 1 normally opened + 1 normally closed NPN discrete output. It is furnished with screw-clamp terminal for electrical connection. It is an inductive proximity sensor with a rated supply voltage of 12V to 48V DC with reverse polarity protection, no-load current consumption of 0mA to 15mA and a switching frequency of ≤300Hz. It is an IP65, IP67 and IP69K rated product. The enclosure is made of PBT. Its dimensions are 40mm (Length) x 117mm (Width) x 40mm (Height) and weighs 0.244kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, CSA, E2, CCC and UL. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.

Brand

Telemecanique Sensors

Range

Inductive and capacitive sensors XS & XT

Part No

XS8C4A1NCG13

Weight (kg)

0.25 kg

Type

Inductive and capacitive sensors XS & XT
