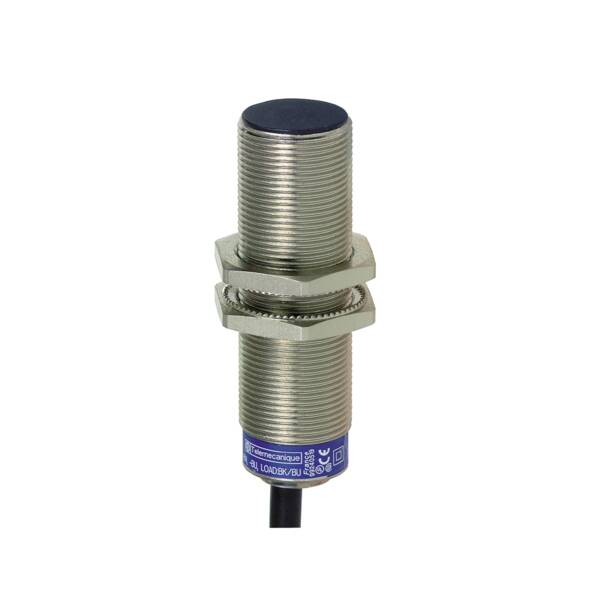

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS1 cylindrical M18 design. It is flush mountable and has a frontal detection face. It supports 5mm nominal sensing distance and 1 normally closed discrete output. It is furnished with 2m cable for electrical connection and 2 LEDs for output state and supply on. It is an inductive proximity sensor with a rated supply voltage of 24V to 210V DC, 24V to 240V AC at 50/60Hz and a switching frequency of ≤2000Hz DC, ≤25Hz AC. It is an IP68 rated product. The enclosure is made of nickel plated brass. Its dimensions are 60mm (Length) x 18mm (Height) and weighs 0.12kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, UL, CCC and CSA. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.

Brand

Telemecanique Sensors

Range

Inductive and capacitive sensors XS & XT

Part No

XS1M18MB250

Weight (kg)

0.10 kg

Type

Inductive and capacitive sensors XS & XT
