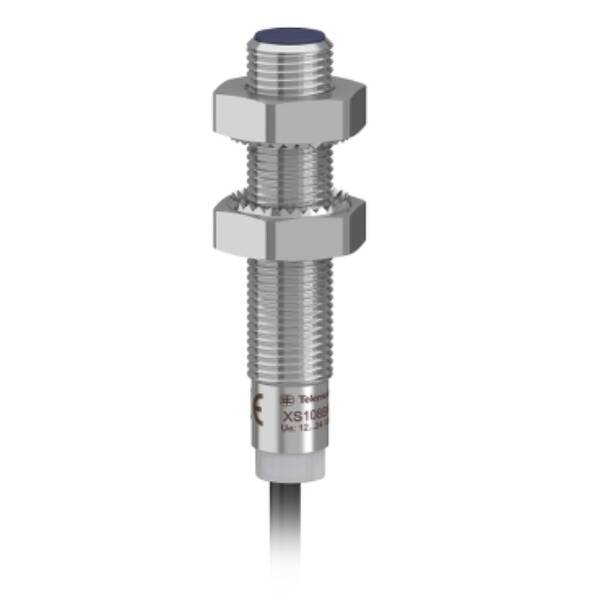

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in a cylindrical M8 design and fixed body. It is flush mountable and in a frontal detection face. It supports 2.5mm nominal sensing distance and 1 NO NPN discrete output. The inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and no load current consumption of ≤10mA. It is furnished with 2m cable for electrical connection. It is an IP67 rated product. The case is made of nickel plated brass. The length of this product is 42mm. It weighs 0.035kg. It is suitable for railway, mobile equipment, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, CSA and UL. Inductive sensors come in flush and non flush versions, M8, M12, M18, M30 short and long bodies cylindrical forms, standard cubic, rectangular and flat forms. The inductive proximity sensors for non contact sensing of metal objects up to 60mm. It is designed for use in industrial applications relating to presence detection.

Brand

Telemecanique Sensors

Part No

XS108BHNAL2

Weight (kg)

0.06 kg
