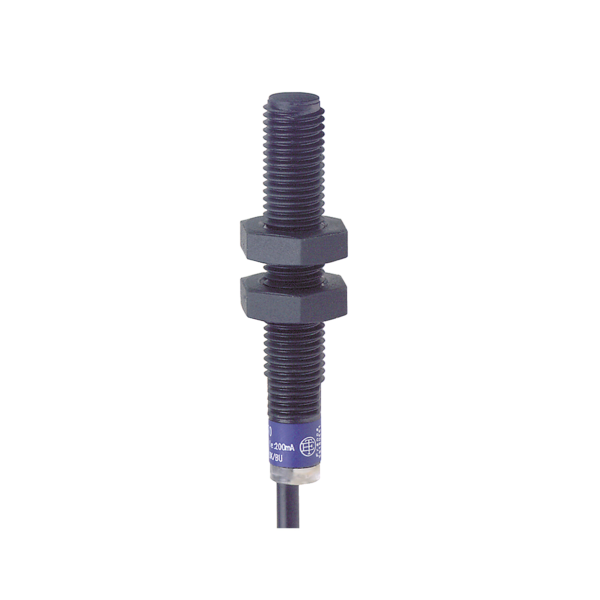

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS4 cylindrical M8 design. It is non-flush mountable and has a frontal detection face. It supports 2.5mm nominal sensing distance and 1 normally opened discrete output. It is furnished with 2m cable for electrical connection and 1 LED for output state. It is an inductive proximity sensor with a rated supply voltage of 24V to 240V AC/DC at 50/60Hz and a switching frequency of ≤25Hz AC, ≤3000Hz DC. It is an IP67 rated product. The enclosure is made of PPS. Its dimensions are 50mm (Length) x 8mm (Height). It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CSA, CCC, CE and UL. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.

Brand

Telemecanique Sensors

Range

Inductive and capacitive sensors XS & XT

Part No

XS4P08MA230

Weight (kg)

0.03 kg

Type

Inductive and capacitive sensors XS & XT
