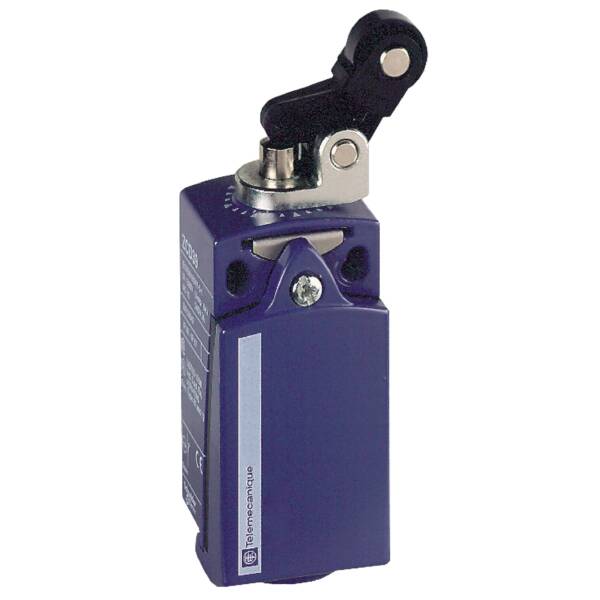

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO form Zb, snap action contacts. It provides switch actuation of 30° cam. The limit switch has a spring return thermoplastic roller lever plunger and supports the vertical approach in 1 direction. The movement of operating head is linear. It is a limit switch with a rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw clamp terminals for electrical connection. It is an IP66/IP67 and IK06 rated product. This plunger head limit switch has a fixed body, made of Zamak. Its dimensions are 31mm (width) x 30mm (depth) x 65mm (height). It weighs 0.19kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CCC, CSA and UL. It meets EN 60204-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60204-1, EN 60947-5-1 and UL 508 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.

Brand

Telemecanique Sensors

Range

OsiSense XC standard Limit Switches

Part No

XCKD2127P16

Weight (kg)

0.18 kg

Type

OsiSense XC standard Limit Switches
