"PanelSet SFHD - outdoor heavy duty - front plinth - H200 W1200 IP55" - Schneider Electric - NSYSPFX12200

"PanelSet SFHD - outdoor heavy duty - front plinth - H200 W1200 IP55" - Schneider Electric - NSYSPFX12200

NSYSPFX12200

Spacial SFHD - outdoor heavy duty - front plinth - H200 W1200 IP55 - Schneider Electric - NSYSPFX12200

Enclosures

~~List Price £1,037.09 +VAT~~

Our Price £777.82 +VAT

SAVE 25% OFF List Price

Fast Track Delivery Product

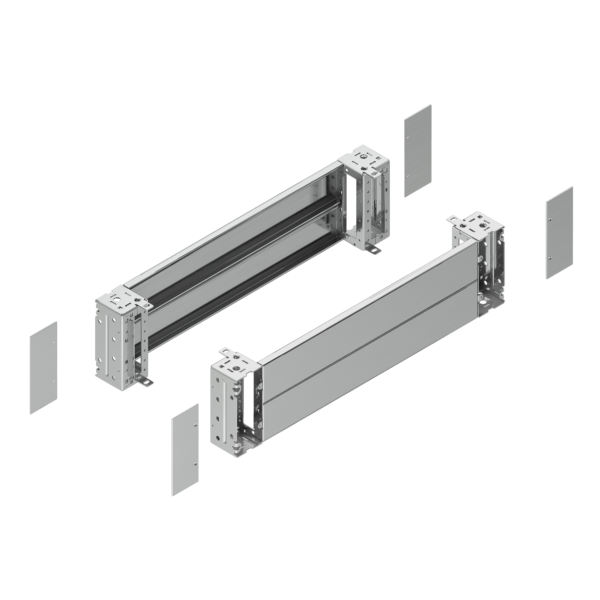

Plinth front for outdoor heavy duty applications to be used with PanelSeT SF, PanelSeT SM, PanelSeT SD, PanelSeT S3D, PanelSeT SFHD, PanelSeT SMX, PanelSeT SFX, PanelSeT SDX and PanelSeT CRNG enclosures The plinth front is to be used in multi-purpose applications The nominal width is 1200mm and real width is 1215mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 13,908kg Ingress protection rating is IP55 (complete plinth) Mechanical protection rating is IK10 "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: PanelSeT SFX
Part No: NSYSPFX12200
Weight (kg): 14.07 kg
Type: Spacial SFX
Colour: Stainless steel
Suitable for enclosure building width: 1200
Width: 1215
Suitable for cable patch: TRUE
Height: 200
Model: Base front/back
Material: Stainless steel
Suitable for outdoor set-up: TRUE
Suitable for aeration/de-aeration: FALSE
Max. load capacity: 900
Depth: 1215

Datasheet for NSYSPFX12200 - "PanelSet SFHD - outdoor heavy duty - front plinth - H200 W1200 IP55" - Schneider Electric - NSYSPFX12200
