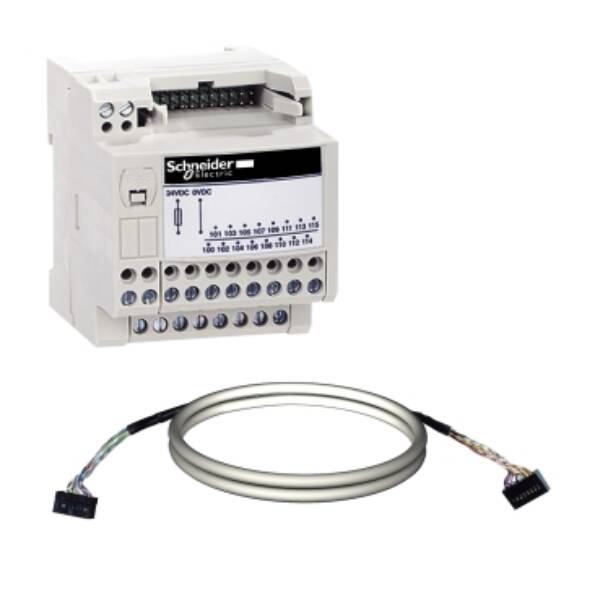

passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m - Schneider Electric - ABE7H20E100

passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m - Schneider Electric - ABE7H20E100

ABE7H20E100

passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m - Schneider Electric - ABE7H20E100

Automation

~~List Price £46.47 +VAT~~

Our Price £37.18 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand: Schneider Electric
Range: Advantys Telefast ABE 7
Part No: ABE7H20E100
Weight (kg): 0.32 kg
Type: Advantys Telefast ABE 7
Connection for NPN-sensors: FALSE
Colour housing: Other
Thread sleeves sensor/actuator slots: Other
Material of contact surface: Other
With potential separation: FALSE
Degree of protection (IP): Other
With LED indication: FALSE
Pollution degree: 1
Material housing: Plastic
Explosion safety category for dust: Other
Explosion safety category for gas: Other
Cable length configurable: FALSE
Material insulation body: Other
Type of branches for sensor-/actuator cables: Other
Fix cable version suitable for cable guide chain: FALSE
Operation temperature: 20…80 °C

Datasheet for ABE7H20E100 - passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1m - Schneider Electric - ABE7H20E100

Download
