XU5M18MA230

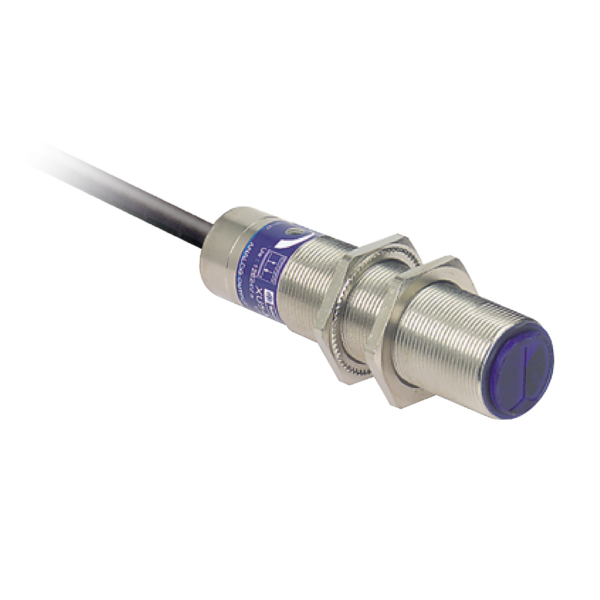

photo-electric sensor - XU5 - diffuse - Sn 0.4m - 24..240VAC/DC - cable 2m - Telemecanique Sensors - XU5M18MA230

Control

~~List Price £110.02 +VAT~~

Our Price £82.52 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This product is part of the XU range, an offer of photoelectric sensors. This general purpose single mode photoelectric sensor in XU5 cylindrical M18 design. It has a diffuse detection system. It supports nominal sensing distance of 0.4m in diffuse mode with 1 NO discrete type of output signal. It is furnished with 2m cable for electrical connection. It is an IP67 rated product. It is a photoelectric sensor with a rated supply voltage of 24V to 240V AC/DC, a maximum residual current of 1.5mA and a switching frequency of ≤25Hz. This sensor, with infrared diffuse emission, has 1 LED for output state. The enclosure is made of nickel plated brass with PMMA lens. Its dimensions are 18mm (Diameter) x 82mm (Length) and weighs 0.15kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CSA, CE and UL.

Brand: Telemecanique Sensors
Range: Photoelectric sensors XU
Part No: XU5M18MA230
Weight (kg): 0.14 kg
Type: Photoelectric sensors XU
