XUVF120M12

photo-electric sensor - XUV - frame - 200X120mm - 12..24VDC - M12 - Telemecanique Sensors - XUVF120M12

Control

~~List Price £746.37 +VAT~~

Our Price £559.78 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

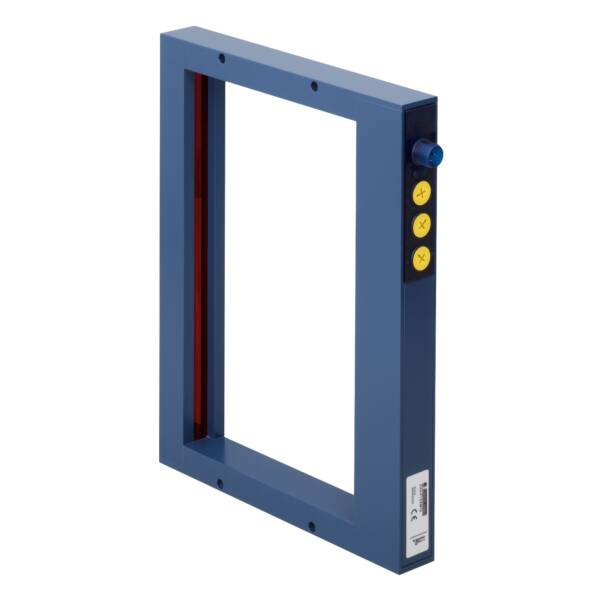

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a frame design. It has a through-beam detection system. It supports a 4mm dynamic mode, 6mm static mode detection and 1 normally opened or 1 normally closed programmable PNP or NPN solid state discrete output. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP65 rated product. It has a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of ≤150mA and a switching frequency of >5000Hz. This sensor, with infrared emission, has 2 LEDs for alarm and output state. The enclosure is made of painted aluminium with Altuglas lens. Its dimensions are 205mm (Width) x 25mm (Depth) x 230mm (Height) and weighs 1.06kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus.

Brand: Telemecanique Sensors
Range: Photoelectric sensors XU
Part No: XUVF120M12
Weight (kg): 1.16 kg
Type: Photoelectric sensors XU
