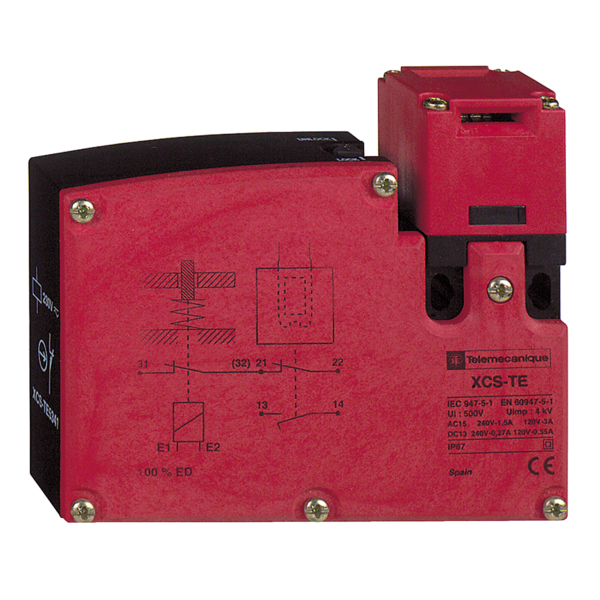

XCSTE7312

plastic safety switch XCSTE - 2 NC - slow break - 1entry tapped M16 - 24 V - Telemecanique Sensors - XCSTE7312

Control

~~List Price £260.14 +VAT~~

Our Price £195.11 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a M16 cable gland entry, allowing for flexible installation. It has 2 normally closed simultaneous (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Brand: Telemecanique Sensors
Range: Preventa XCS
Part No: XCSTE7312
Weight (kg): 0.40 kg
Type: Preventa XCS
