ABS7EA3M5

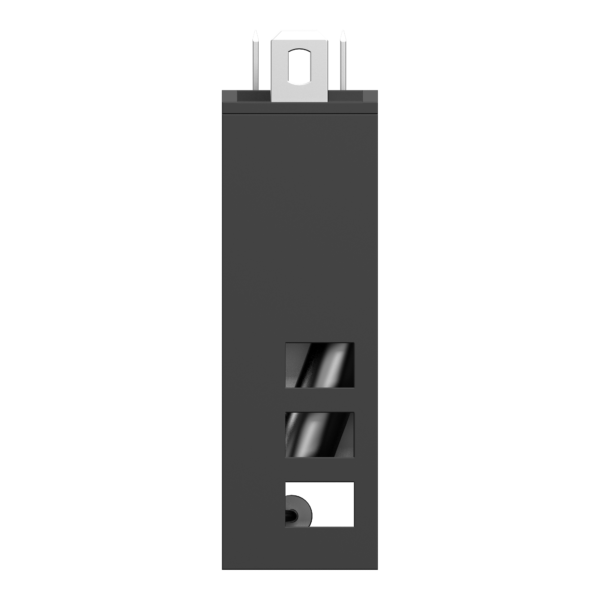

plug-in solid state relay- 12.5 mm - input - 230..240 V AC 50HZ - Schneider Electric - ABS7EA3M5

Automation

~~List Price £17.86 +VAT~~

Our Price £14.29 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
