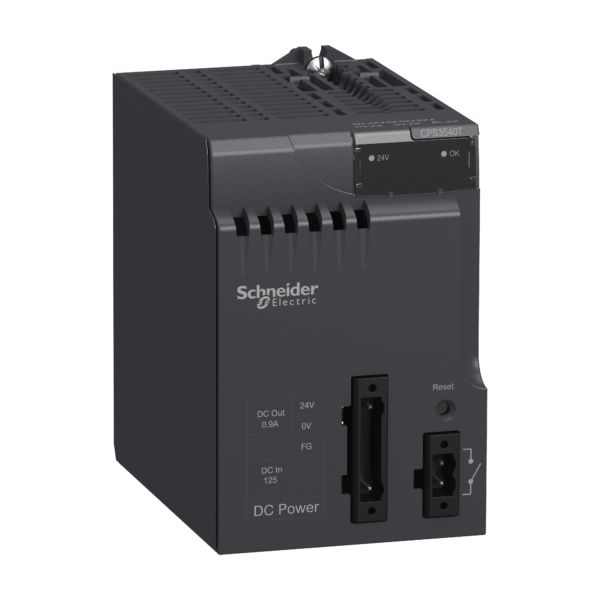

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXCPS3540T

Weight (kg)

0.48 kg

Type

Modicon X80 I/Os

Width

68

Suitable for safety functions

FALSE

Redundancy

FALSE

Input voltage at AC 50 Hz

125 V

Depth

99

Output voltage at AC 50 Hz

3.3…24 V

Input voltage at AC 60 Hz

125 V

Max. input current AC 60 Hz

0.35

Type of voltage (input voltage)

AC/DC

Power output

31.2

Height

104

Output voltage at AC 60 Hz

3.3…24 V

Type of output voltage

AC/DC

Max. output current DC

4.5

Max. input current AC 50 Hz

0.35
