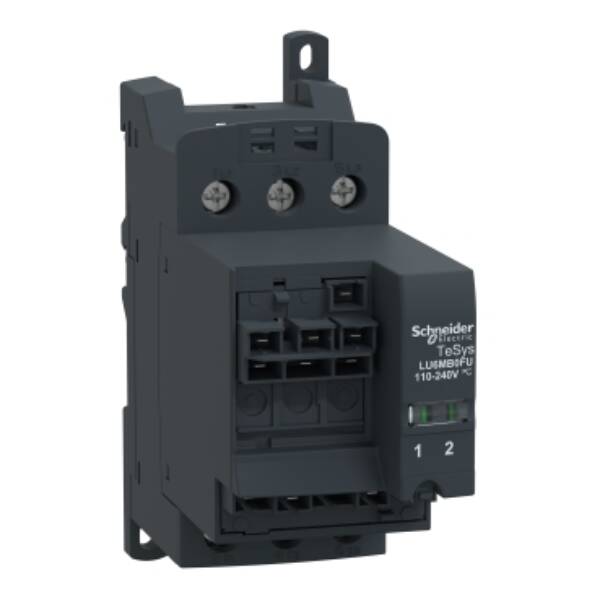

Reverser block for side mounting, TeSys U, 38A/690V, coil 110-240V AC/DC - Schneider Electric - LU6MB0FU

Reverser block for side mounting, TeSys U, 38A/690V, coil 110-240V AC/DC - Schneider Electric - LU6MB0FU

LU6MB0FU

Reverser block for side mounting, TeSys U, 38A/690V, coil 110-240V AC/DC - Schneider Electric - LU6MB0FU

Control

~~List Price £160.92 +VAT~~

Our Price £120.69 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 110-240V AC / 110-220V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*FU type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LU6MB0FU
Weight (kg): 0.44 kg
Type: TeSys U
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 110…240 V
Rated control supply voltage Us at AC 60HZ: 110…240 V
Rated operation power NEMA: 14.9
Rated operation current Ie at AC-3, 400 V: 38
Voltage type for actuating: AC/DC
Rated control supply voltage Us at DC: 110…240 V
Function: Reversing safety
Degree of protection (IP): IP20
Rated operation power at AC-3, 400 V: 18.5
Degree of protection (NEMA): Other

Datasheet for LU6MB0FU - Reverser block for side mounting, TeSys U, 38A/690V, coil 110-240V AC/DC - Schneider Electric - LU6MB0FU

Download
