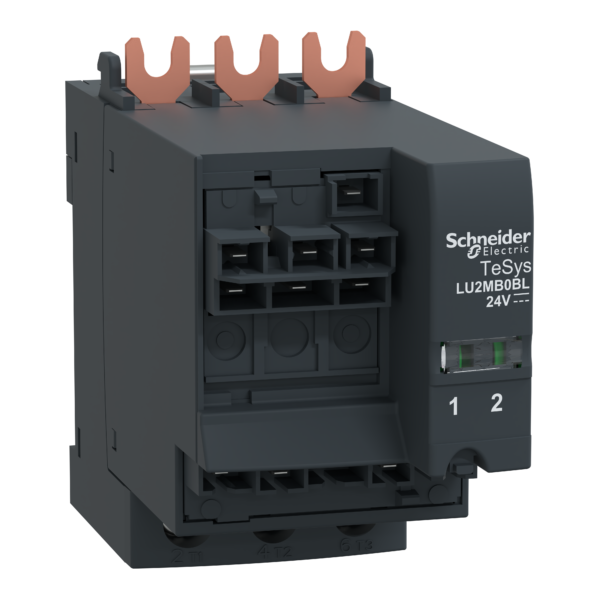

Reverser block for vertical mounting, TeSys U, 38A/690V, coil 24V DC - Schneider Electric - LU2MB0BL

Reverser block for vertical mounting, TeSys U, 38A/690V, coil 24V DC - Schneider Electric - LU2MB0BL

LU2MB0BL

Reverser block for vertical mounting, TeSys U, 38A/690V, coil 24V DC - Schneider Electric - LU2MB0BL

Control

~~List Price £160.92 +VAT~~

Our Price £120.69 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LU2MB0BL
Weight (kg): 0.39 kg
Type: TeSys U
Type of electrical connection of main circuit: Screw connection
Rated operation power NEMA: 14.9
Rated operation current Ie at AC-3, 400 V: 38
Voltage type for actuating: DC
Rated control supply voltage Us at DC: 24 V
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 18.5
Degree of protection (NEMA): Other

Datasheet for LU2MB0BL - Reverser block for vertical mounting, TeSys U, 38A/690V, coil 24V DC - Schneider Electric - LU2MB0BL

Download
