REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32E7

REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32E7

LC2D32E7

REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32E7

Control

~~List Price £349.04 +VAT~~

Our Price £261.78 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

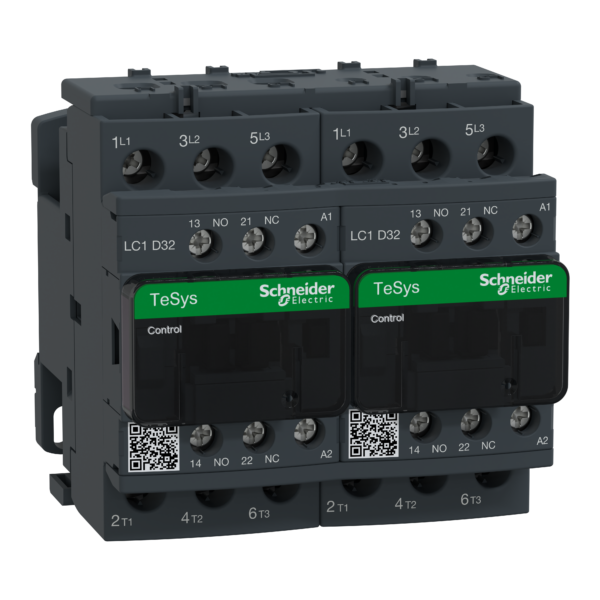

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 32A/440V AC-3/3e (15kW@400V). It provides 48V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D32E7
Weight (kg): 0.95 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated control supply voltage Us at AC 50HZ: 48 V
Rated control supply voltage Us at AC 60HZ: 48 V
Rated operation power NEMA: 14.9
Voltage type for actuating: AC
Rated operation current Ie at AC-3, 400 V: 32
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 15
Degree of protection (NEMA): Other

Datasheet for LC2D32E7 - REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32E7

Download
