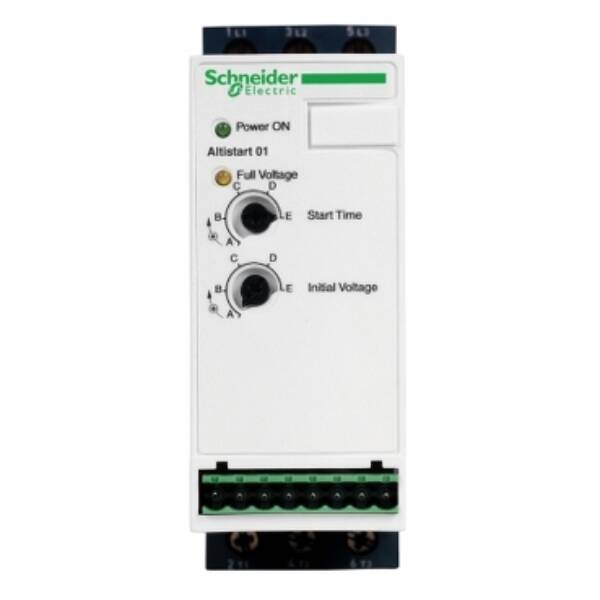

soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW - Schneider Electric - ATS01N109FT

soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW - Schneider Electric - ATS01N109FT

ATS01N109FT

soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW - Schneider Electric - ATS01N109FT

Automation

~~List Price £197.72 +VAT~~

Our Price £148.29 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 4kW or 5hp for 3-phase (110V to 480V AC) and up to 1.1kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand: Schneider Electric
Range: Altistart 01
Part No: ATS01N109FT
Weight (kg): 0.34 kg
Type: Altistart 01
With display: FALSE
Rated control supply voltage Us at AC 50HZ: 110…240 V
Rated operating voltage Ue: 110…480 V
Rated control supply voltage Us at AC 60HZ: 110…240 V
Release class: Other
Rated operation current Ie at 40 °C Tu: 9
Internal bypass: TRUE
Torque control: FALSE
Rated power three-phase motor, inline, at 230 V: 1.5
Rated control supply voltage Us at DC: 24 V
Rated power three-phase motor, inline, at 400 V: 4
Voltage type for actuating: AC/DC
Integrated motor overload protection: FALSE
Function: Single direction
Degree of protection (IP): IP20
Rated surrounding temperature without derating: 40

Datasheet for ATS01N109FT - soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW - Schneider Electric - ATS01N109FT

Download
