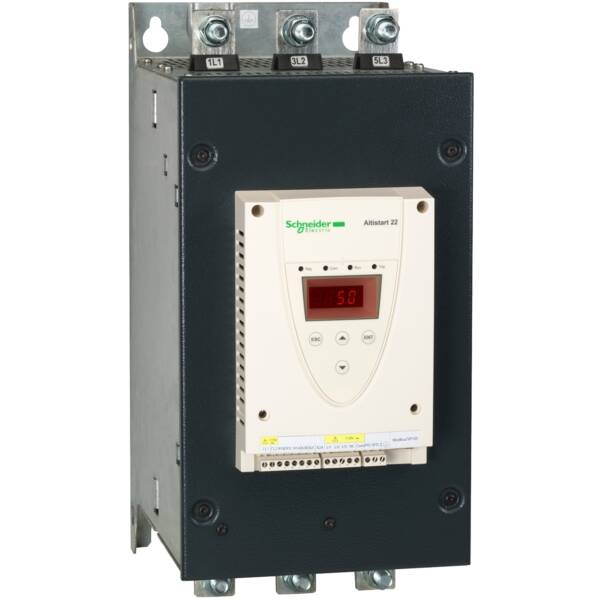

softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

ATS22C21S6U

softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

Automation

~~List Price £2,543.29 +VAT~~

Our Price £1,907.47 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 210A, a rated power from 60HP to 200HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Brand: Schneider Electric
Range: Altistart 22
Part No: ATS22C21S6U
Weight (kg): 25.00 kg
Type: Altistart 22
With display: FALSE
Rated control supply voltage Us at AC 50HZ: 110 V
Rated control supply voltage Us at AC 60HZ: 110 V
Rated operating voltage Ue: 208…600 V
Release class: Other
Rated operation current Ie at 40 °C Tu: 210
Internal bypass: TRUE
Torque control: TRUE
Rated power three-phase motor, inline, at 230 V: 55
Voltage type for actuating: AC/DC
Rated power three-phase motor, inline, at 400 V: 110
Degree of protection (IP): IP20
Function: Single direction
Integrated motor overload protection: TRUE
Rated surrounding temperature without derating: 40

Datasheet for ATS22C21S6U - softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

Download
