SSM1A112BDR

Solid state modular relay, 12 A, random swtching, input 4...32 V DC, output 24...280 V AC - Schneider Electric - SSM1A112BDR

Control

~~List Price £43.18 +VAT~~

Our Price £32.39 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

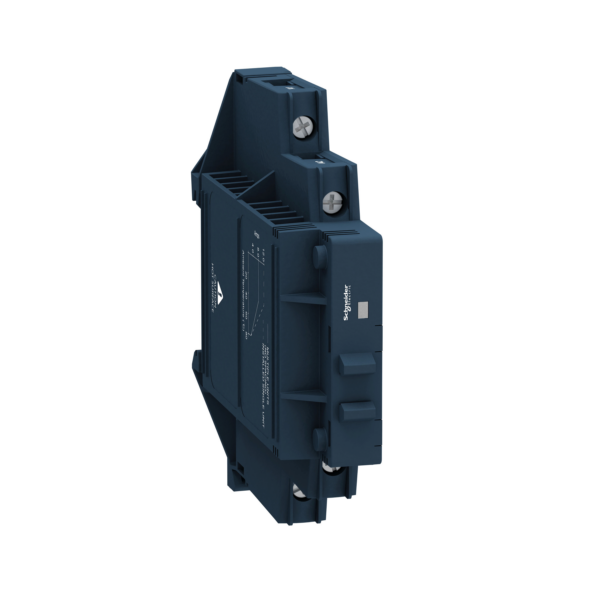

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Solid State Relays
Part No: SSM1A112BDR
Weight (kg): 0.09 kg
Type: Harmony Solid State Relays
Rated control supply voltage Us at AC 50HZ: 24…280 V
Rated control supply voltage Us at AC 60HZ: 24…280 V
Operating voltage: 24…280 V
Number of phases: 1
Modular version: TRUE
Rated operation current Ie at AC-53a: 12
Rated operation current Ie at AC-51: 12
Rated operation current Ie at AC-53b: 12
Voltage type for actuating: AC/DC
Rated operation current Ie at AC-1: 12
Rated control supply voltage Us at DC: 4…32 V
Switching at zero-crossing: FALSE
Rated operation current Ie at AC-3: 12

Datasheet for SSM1A112BDR - Solid state modular relay, 12 A, random swtching, input 4...32 V DC, output 24...280 V AC - Schneider Electric - SSM1A112BDR
