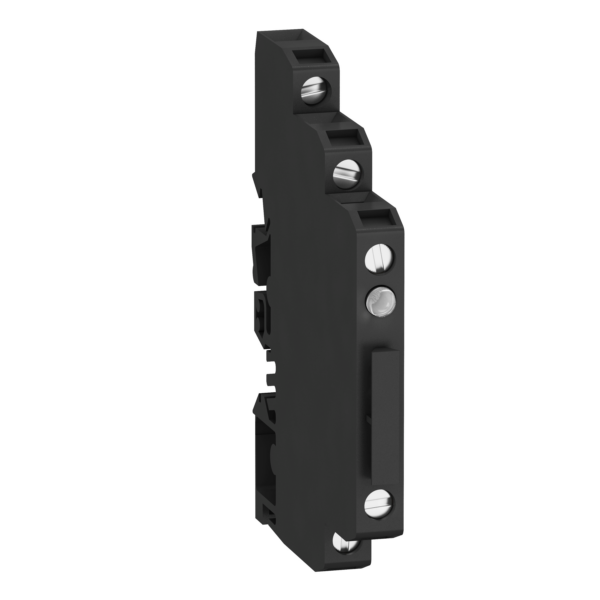

This product is part of the Harmony Solid State Relays range, an offer of panel mount solid state relays. The 1-phase solid state relay has 1 NO contact with an output voltage of 12V to 280V AC and a rated current of 3A. It is an automation relay with a control circuit voltage of 4V to 28V DC and a switching voltage of 4V DC turn on. It offers screw terminals and clamping capacity of 1 x 0.2mm² to 1 x 5.26mm² (AWG 24 to AWG 10) connections. Its dimensions are 7.5mm (width) x 63mm (depth) x 80mm (height). It weighs 0.03kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This product is certified by UL, CSA, EAC and CE marking. It supports symmetrical DIN rail mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.

Brand

Schneider Electric

Range

Harmony Solid State Relays

Part No

SSLM1A13BD

Weight (kg)

0.03 kg

Type

Harmony Solid State Relays
