SSL1D03JD

Solid state relay, 3.5 A, DC switching, input 3…12 V DC, output 1...24 V DC - Schneider Electric - SSL1D03JD

Control

~~List Price £15.42 +VAT~~

Our Price £11.57 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

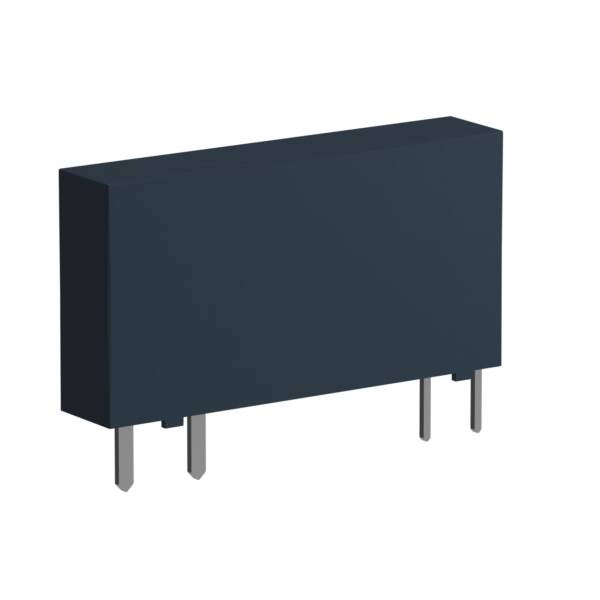

This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 3V to 12V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Solid State Relays
Part No: SSL1D03JD
Weight (kg): 0.00 kg
Type: Harmony Solid State Relays
Operating voltage: 1…24 V
Number of phases: 1
Modular version: TRUE
Rated operation current Ie at AC-53a: 3.5
Rated operation current Ie at AC-51: 3.5
Rated operation current Ie at AC-53b: 3.5
Rated control supply voltage Us at DC: 3…12 V
Rated operation current Ie at AC-1: 3.5
Voltage type for actuating: DC
Switching at zero-crossing: FALSE
Rated operation current Ie at AC-3: 3.5

Datasheet for SSL1D03JD - Solid state relay, 3.5 A, DC switching, input 3…12 V DC, output 1...24 V DC - Schneider Electric - SSL1D03JD

Download
